SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover

Name: SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-800
Price: 10,500.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-800
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Nozzle Cleaner

Voltage:

Single Phase, AC100V/220V

Nozzle Tray:

Customized

Cleaning Capacity:

Max 30 Pcs Nozzles

Control Panel:

Touch Screen(English)

Machine Size:

500*440*530mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Data Sheet Nozzle Cleaning Machine HS-800.pdf

SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover

Cleaning Principle

High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.

Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.

Specification

Model	HS-800
Voltage	Single phase, AC110-220V, 50H60Hz
Air pressure	0.5~0.6Mpa
Air source	Pure compressor air
Control mode	PLC+Touch Screen
Jet pressure	≤0.4MPa
Air wastage	Under 280NL/min
Water source	D.I water
Water storage	800cc
Water consumption	300cc/hrs
Admission pipe/Drainpipe	φ8/φ6
Nozzle tray	Default 30 nozzles
Nozzle size	01005, 0201-2512inch
Noise	35-60dB

Product Features

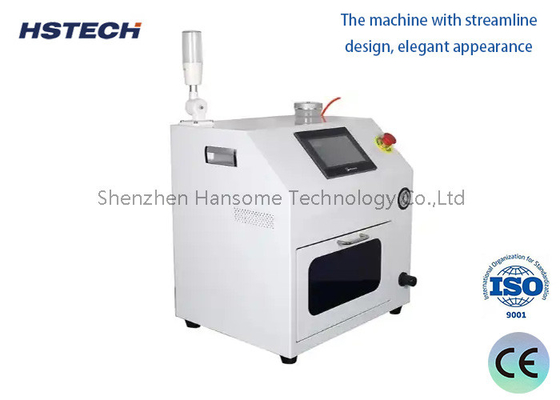

1, Elegant appearance, high precision 304 stainless steel machine body.

2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.

3, Suitable for cleaning all kinds of nozzles, also have good cleaning performance for cross type, I-shaped, and special shape nozzles.

4, The atomized water flow equipped with supersonic spraying cleaning to completely clean the dirt impurities which the ultrasonic waves can not clean it all, ensure the clearness even very small nozzle holes.

5, Easy operation, English is available.

6, Inspection window which can watch the whole cleaning process.

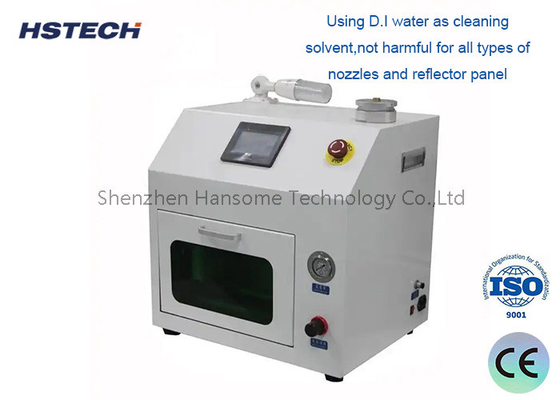

7, Using D.I water as cleaning solvent,not harmful for all types of nozzles and reflector panel.

8, Touch screen + PLC distributed control, stable and reliable performance

SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover 0

Machine size

SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover 1

Nozzle Tray

SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover 3

SMT Nozzle Cleaner with PLC Touch Screen and Green Color Cover 4

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.

We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
