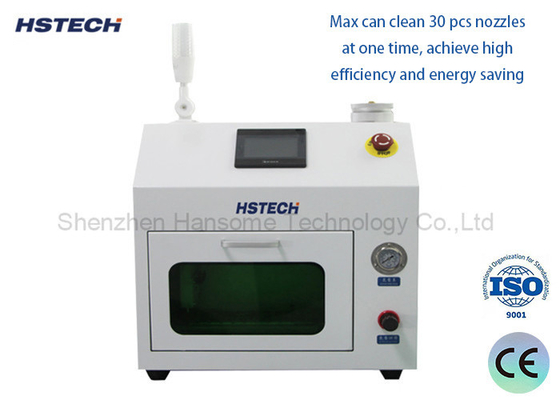

Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle

Name: Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-800
Price: 10,500.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-800
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Nozzle Cleaner

Voltage:

Single Phase, AC100V/220V

Nozzle Tray:

Customized

Cleaning Capacity:

Max 30 Pcs Nozzles

Control Panel:

Touch Screen(English)

Machine Size:

500*440*530mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Data Sheet Nozzle Cleaning Machine HS-800.pdf

SMT Nozzle Cleaning Equipment HS-800 with PLC Touch Screen and Green Cover

Specification

Model	HS-800
Voltage	Single phase, AC110-220V, 50H60Hz
Air pressure	0.5~0.6Mpa
Air source	Pure compressor air
Control mode	PLC+Touch Screen
Jet pressure	≤0.4MPa
Air wastage	Under 280NL/min
Water source	D.I water
Water storage	800cc
Water consumption	300cc/hrs
Admission pipe/Drainpipe	φ8/φ6
Nozzle tray	Default 30 nozzles
Nozzle size	01005, 0201-2512inch
Noise	35-60dB

Product Features

1, Elegant appearance, high precision 304 stainless steel machine body.

2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.

3, Suitable for cleaning all kinds of nozzles, also have good cleaning performance for cross type, I-shaped, and special shape nozzles.

4, The atomized water flow equipped with supersonic spraying cleaning to completely clean the dirt impurities which the ultrasonic waves can not clean it all, ensure the clearness even very small nozzle holes.

5, Easy operation, English is available.

6, Inspection window which can watch the whole cleaning process.

7, Using D.I water as cleaning solvent,not harmful for all types of nozzles and reflector panel.

8, Touch screen + PLC distributed control, stable and reliable performance

Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle 0

Machine size

Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle 1

Nozzle Tray

Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle 3

Efficient and Quick SMT Nozzle Cleaning Machine HS-800 with 2-Minute Cleaning Cycle 4
