CE Certified Panasonic PLC Controlled PCB Stacker Unloader with Adjustable Width

CE Certified Panasonic PLC Controlled PCB Stacker Unloader with Adjustable Width

Brand Name:	HSTECH
Model Number:	HS-ST400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Stacker

Other Name:

Bare Board Unloader

Power Supply:

AC110V/220V,single Phase

Program:

PLC

PLC Brand:

Panasonic

Air Pressure:

0.6Mpa

PCB Thickness:

0.6~4.0mm

Warranty:

1 Year

Packaging Details:

Wooden package,with foam

Supply Ability:

100 sets per month

Product Description

Width Adjustment Panasonic PLC CE Listed PCB Stacker Machine Bare Board Unloader

Application

This machine used for unloading/collection bare PCBs from SMT production line after laser marking.

Features

1. Panasonic PLC program control.
2. Traditional and simple LED button Control.

3, Smema signal connection.

4, Manual PCB thickness adjustment.

5, Hand crank PCB width adjustment.

6, LED display light status.

7, Aluminium structure, heavy bottom design to prevent shift.
8, Pass-through mode provided.

Model	HS-ST400	HS-ST530
Efficient PCB length	50~400mm	50~530mm
Transport PCB width	50~400mm	50~500mm
PCB thickness	Min 0.6mm	Min 1.0mm
Machine dimension	6506701200mm	8008801200mm
Weight	170kg	190kg

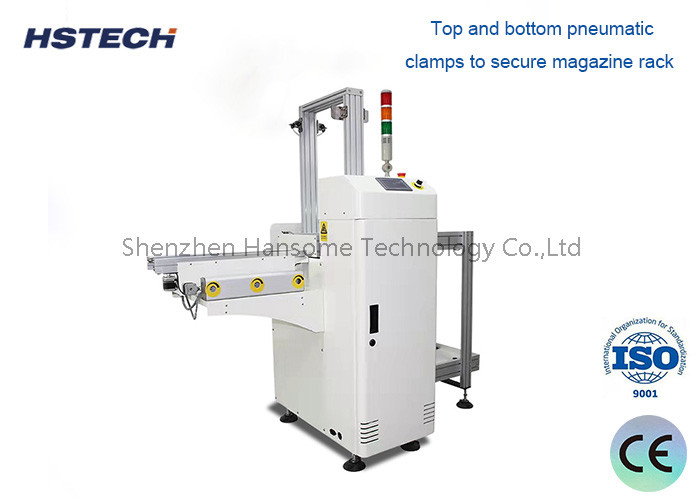

CE Certified Panasonic PLC Controlled PCB Stacker Unloader with Adjustable Width 0

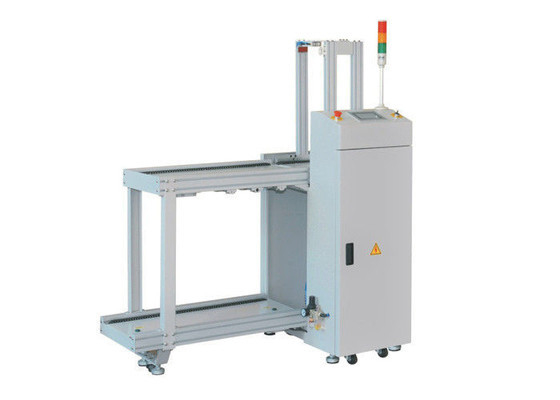

CE Certified Panasonic PLC Controlled PCB Stacker Unloader with Adjustable Width 1

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
