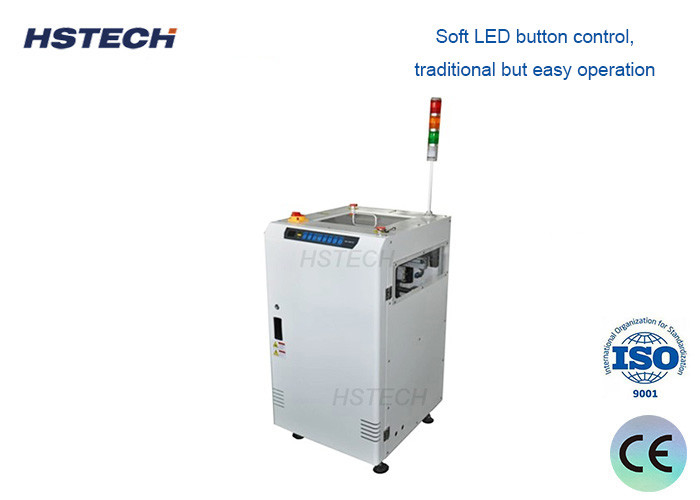

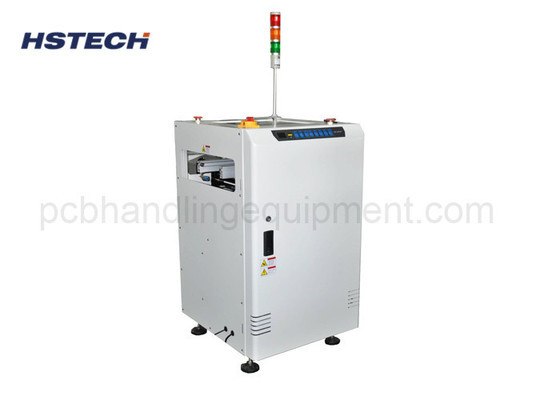

MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine

Brand Name:	HSTECH
Model Number:	HS-460FL
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Production Name:

PCB Inverter Machine

Power Supply:

AC100-230V,single Phase,max300A

Optoelectronic Switch:

Omron

Height Adjustment:

Feet Cup

Display:

3 Color Display

Warranty:

1 Year

Packaging Details:

Wooden case

Supply Ability:

100 sets per month

Product Description

MITSUBISHI PLC Automated PCB Inverter / Flipper Handling Machine with Step Motor

Specification

Machine function	180degree PCB invertering
Power supply	AC100-230V, single phase, 50/60Hz
Transport belf	ESD 7mm belt
PCB dimension	(5050)-(500460)mm
Air supply	4-6 bar,max 10L/min
Transport height	900±20mm
Transport direction	L-R or R-L (optional)
PCB thickness	Min 0.4mm
Up/down pitches	1-4(10mm step)
Recycle time	around 20 seconds
Communication	SMEMA
Machine dimension	6009001200mm
Weight	140kg

MITSUBISHI PLC Automated PCB Inverter/Flipper Handling Machine 0

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
