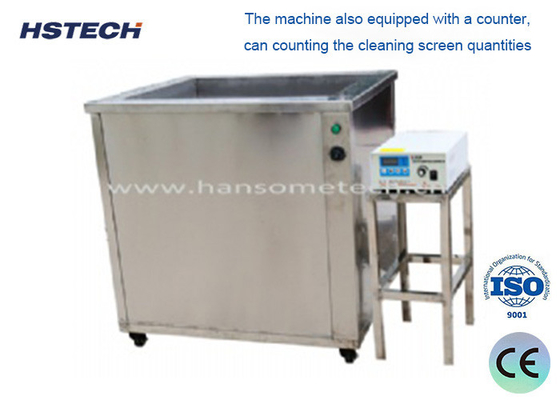

Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System

Name: Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-600
Price: 10,500.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-600
MOQ:	1 set
Price:	9000~12000usd/set
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Product Name:

SMT Stencil Cleaning Machine

Other Name:

Screen Printer Stencil Cleaner

Cleaning:

SUS304 Stainless Steel

Stencil Size:

Standard Size 740*740*40mm, Customized Is Available

Cleaning Obejects:

Solder Paste, Red Glue, Flux, Sosin,etc.

Cleaning Solvent:

Alcohol

Drying Function:

Yes

Machine Dimension:

980MM(L)*700MM(W)*1730MM(H)

Packaging Details:

Wooden case

Supply Ability:

30 sets per month

Product Description

Data sheet of Pneumatic stencil cleaner HS-600.pdf...

Automated SMT Stencil Cleaner w/ 3-Level Filter System

Specification

Model	HS-600
Power supply	Compressor air
Application	stencil,metal mesh, steel mesh,cooper screen,gule screen
Stencil size	standard 29inch and below,74074040mm
Cleaning solvent	Alcohol
Cleaning liquid capacity	Max 45L,Min20L
Best cleaning fluid using volume	40L
Liquid consumption	120ml/pc
Cleaning method	Rotary double side pressure injection and high pressure air
Cleaning time	2~4 Min Stencil and Copper Screen
Drying time	2~5 Min
External air supply	0.4Mpa~0.6Mpa
Consumer air quantity	400~600L/Min
Air outlet size	φ125*25mm
Solder dross filter mode	3 level filter(10um,5um,1um)
Weight	305kg
Machine dimension	980MM(L)700MM(W)1730MM(H)

Cleaning performance

Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System 0

Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System 1

Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System 2

Stainless Steel SMT Stencil Cleaning Machine with 3 Level High Precision Filter System 3

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.

At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
