| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-DC250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Surface Dust Cleaner | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |
Front-Side Operation Multi-Function SMT Production Line Automatic PCB Surface Dust Cleaner
Technical Details
| Function | This machine used for remove dust, glass fiber, static electricity,etc on top surface of PCB before screen printing. |
| Transport height | 900±30mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 8 seconds |
| Sticker roller qty | 1reel |
| Adhesive paper | 2 reels |
| Ionizer qty | 2pcs |
| Brush | 1pc |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | 0.4~5mm |
| Communication | SMEMA |
Specification
| Model | HS-DC250 | HS-DC330 |
| Efficient PCB length | 50*50~330*250mm | 50*50~455*330mm |
| Machine dimension | 650*800*1300mm | 800*950*1300mm |
| Weight | 100kg | 130kg |
Features
1, According to the SMT production line requirements develop and design equipment.
2, PLC control system.
3, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
4, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
5, Equipped with the Keyence brand static climinators, completely eliminate electrostatic interference.
6, Touching clean method, cleanness above 99%.
7, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
8, Mechanical parts draw-out design, maintenance is simple.
9, Interface display in English and Chinese, interface operation convenient and simple.
10, SMEMA signal compatible.
Machine drawing

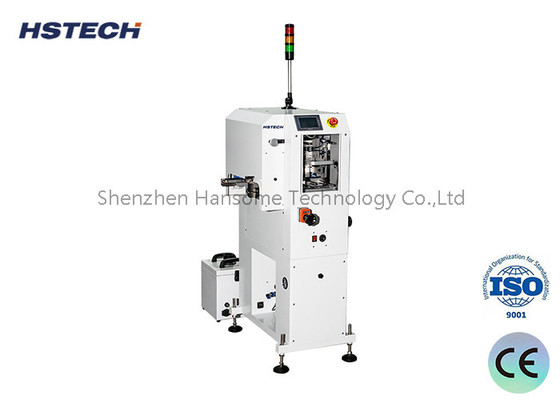

Product physical picture
Application
This machine used for remove dust, glass fiber, static electricity,etc on top surface of PCB before screen printing.
