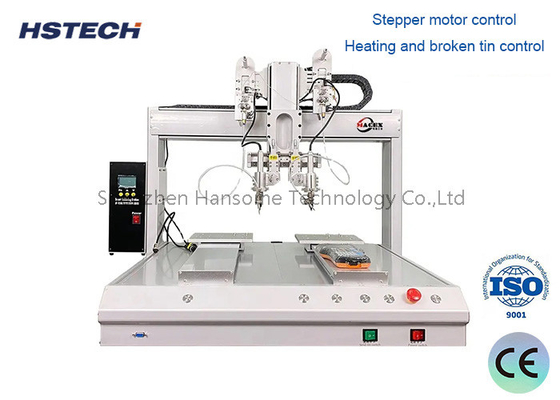

X/Y/Z/R Rotation 4 Axis Automatic Soldering Robot for PCB and Cable Soldering

Brand Name:	HSTECH
Model Number:	HS-S5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Place of Origin:

China

Certification:

Product Name:

Tabletop Soldering Robot

Other Name:

Robotic Soldering Machine

Working Station:

Dual Working Station

Soldering Head:

Single Tip

Rotation:

360degree

System:

Manual Programming, Fast Swtiching

Packaging Details:

Wooden package

Supply Ability:

200 pcs per month

Product Description

Double Working Station Automatic Soldering Robot, 300-450°C Welding Temp, High Quality Heating

Features

1, Full automatic operation in one step, including auto soldering, auto clean, auto smoke exhausting,etc.

2, Suitable for all components and inserts components soldering.

3, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

4, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

Specification

Model	HS-S5331R
Voltage	AC110V/220V,50/60Hz
X/Y1/Y2/Z working range	500300300*100mm
R axis	360 degree
X/Y1/Y2/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Manual programmin with teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	85kg
Machine dimension	680585800mm
