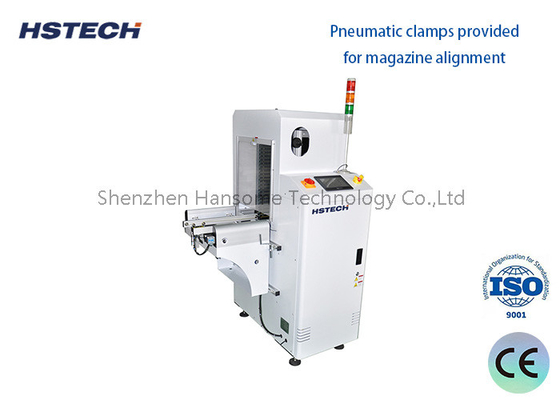

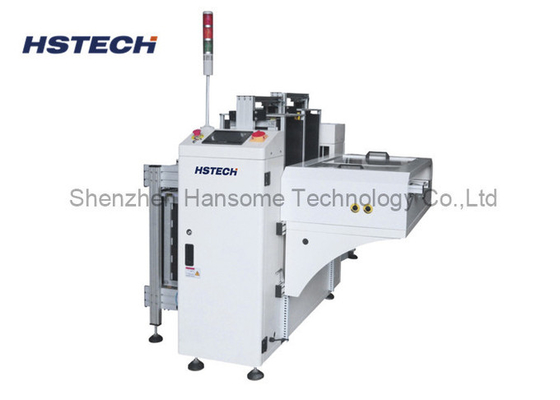

Transport Direction L~R/R~L Touch Screen PCB Buffer with SMEMA Compatible

Brand Name:	HSTECH
Model Number:	HS-HC250S
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Buffer

Warranty:

1 Year

Control:

Touch Screen

Relay Brand:

Schneider

Material:

Aluminum Alloy

Thickness:

0.6-4.0mm

Power Supply:

AC220V

Air Pressure:

4-6bar

Speed:

200-300pcs/min

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Transport Direction L~R/R~L Touch Screen PCB Buffer with SMEMA Compatible

Function

Temporary storage: used to temporarily store PCBs in the production line so that they can be transferred between different processes to avoid production line congestion.
Balanced production line: through buffer storage, it helps to balance the production speed of different processes and ensure smooth connection of each link.
Reduce waiting time: when some processes require time to process, PCB buffer can reduce the waiting time of other processes and improve overall efficiency.

Technical Details

Transport height	910±20mm
Transportation direction	L~R, or R~L
Board cycle time	Approx 20 seconds
Magazine change over time	Approx 30seconds
Track fixed side	Front side
Operation side	Front side
PCB thickness	Min 0.6mm
Pitch selection	1-4(10mm pitch)
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	4-6Bar
Air consumption	Max 10L/min
Number of magazines	Upper:1 magazine, Bottom side:1 magazines
Signal	SMEMA
Options	1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.

Specification

Model	HS-HC250S	HS-HC330M	HS-HC390L	HS-HC460XL
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Magazine size	355320563mm	460400563	535460570mm	535530570mm
Machine dimension	125012001600mm	146013601600mm	161014801600mm	161016201600mm
Weight	170kg	230kg	300kg	330kg
