LED Button Control 350mm Width PCB Turn Conveyor for SMT Line

Brand Name:	HSTECH
Model Number:	HS-SZ460
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Turn Conveyor

Other Name:

PCB Turning Board Handling Machine

Power Supply:

AC100-230V,50/60Hz

Control:

PLC

Operation:

LED Button

Signal:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

LED Button Control 350mm Width PCB Turn Conveyor for SMT Line

Introduction:

This machine used in the special SMT line with Corner, for changing the PCB flow direction.

Features:

1, Adjustable 350mm PCB width.
2, Customized fixes rail selection.
3, Used for Changing the PCB transporting direction in 90.
4, Soft LED button control, traditional but easy operation.
5, Top side safety transparent cover, operation can watch the whole working process.
6, Use hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smoothly lead screw for adjust the pcb width.
9, SMEMA compatible.

Specification:

Product name	PCB Turn Conveyor
Transport height	910±20mm
Transportation direction	L~R, or R~L
Cycle time	Approx 5 seconds
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz,single phase
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	Min 0.4mm
Signal	SMEMA

Model	HS-SZ350	HS-SZ460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	7007501200mm	8408901200mm
Weight	150kg	180kg

Applications

PCB Assembly Lines:
Used to transport PCBs between different assembly stations, such as component placement, soldering, and inspection.
Testing Stations:
Directs PCBs to automated testing equipment for electrical testing and quality control.
Packaging Areas:
Transports finished PCBs to packaging stations for shipment or further processing.
Rework Stations:
Facilitates movement to rework areas for any necessary repairs or modifications.

Product detail:

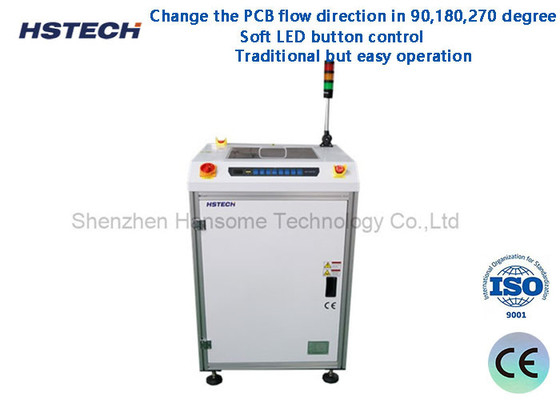

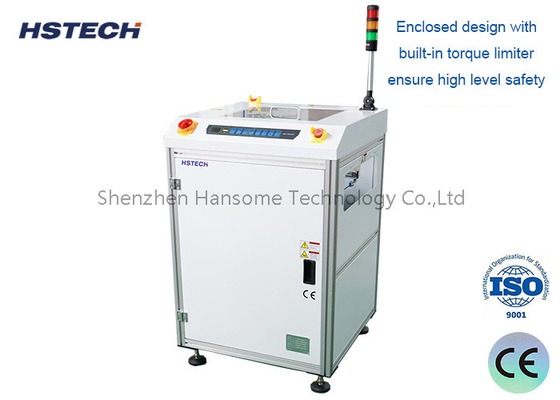

LED Button Control 350mm Width PCB Turn Conveyor for SMT Line 0
