| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-120ST |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Name: | Ultrasonic Cleaning Tank | Usage: | Cleaning Stencils, PCBA, Squeegee, Hardware, Etc. |
|---|---|---|---|
| Cleaning Tank Capacity: | 38L | Heating Function: | Yes |
| Use: | Container / Bottle Cleaning | Cleaning Process: | Ultrasonic Generator |
| Power(w): | 1500w | Condition: | New |

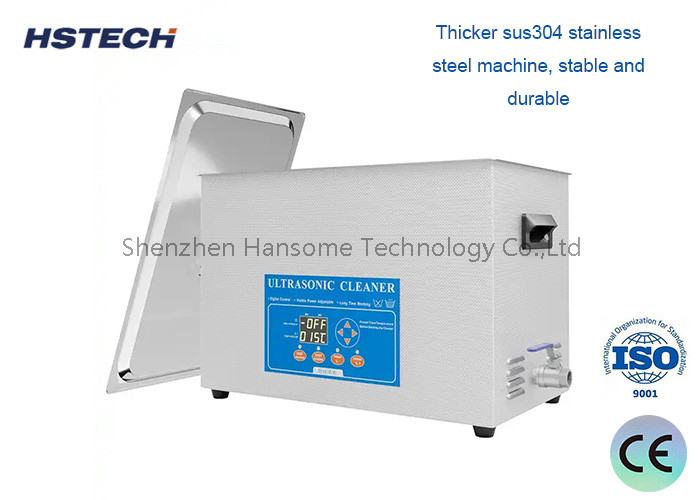

Digital LCD Control Ultrasonic Cleaning Tank 38L for Cleaning Stencils, PCBA
Features:
1, High power transducer cleaning effect significantly, usable macroscopic observation;
2, After cleaning objects shine light;
3, Digital LCD control boot time;
4, The stainless steel and the lid, bladder, more upscale;
5, Waterproof properties is greatly improved, more safety products last;
6, With constant temperature system with heating.
Specification:
| Model | HS-120ST |
| Ultrasonic frequency | 28/40 kHz |
| The tank material | Stainless steel SUS304 stamping slot |
| Tank capacity | 38L |
| Timer | 1~99 min adjustable |
| Heater | 0 ~80℃ adjustable |
| Power | AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz |
| Ultrasonic power | 40~600 W adjustable, 12 transducers |
| Heating power | 1500W |
| The tank size | 500 x 300 x 250 mm (L x W x H) |
| Shape dimension | 670 x 480 x 700 mm (L x W x H) |
| N.W | 30KG |
| G.W | 35KG |
| Certification | CE,RoHS |
Ultrasonic device
1, Ultrasonic installation method: bottom-mounted shock plate;
2, 72 vibrators are installed at the bottom of the tank; Ultrasonic power: 0-3600W can be adjusted
3, ultrasonic power: 0 ~ 1800W * 2 sets (continuously adjustable), ultrasonic frequency 28 / 40KHz
4, The ultrasonic transducer adopts the pure industrial shock head imported from South Korea, which has large cleaning power and long service life;
5, Adopting the latest bonding technology of Korea and imported special adhesive to ensure better bonding performance between the transducer and the vibrating surface. No degumming considerations, stable performance. The transducers are all reinforced and equipped with high frequency wires.
