| Product Name: | Floor-standing Automatic Soldering Robot | Machine Body: | Metal Structure |
|---|---|---|---|
| Iron Tin: | Single | Platform: | Double Y Working Platform |
| Linear Guide: | Hiwin | Usage: | Pcb Soldeing,Welding,Circuit Board Soldering |
Double Y Working Platform Floor-standing Automatic Soldering Robot for Pcb Soldeing
Introduction:
This model automatic soldering machine is the floor standing model soldering robot, different from the desktop soldering machine, it's a more convenient and flexible soldering robot.
This machine adopts the 5 axis working system, with double soldering platform, single soldering iron/tip morving range 500x300x300x100mm.
The machine suitable for many kinds of PCBA welding, automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.
Features:

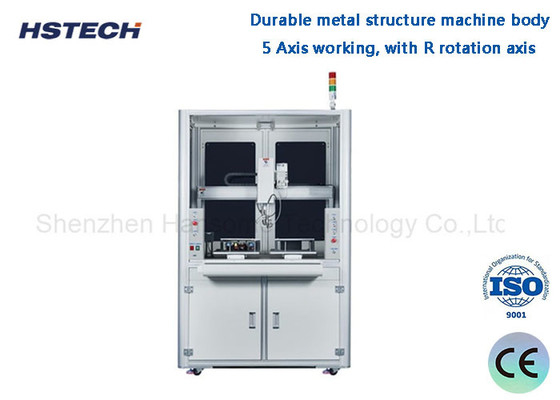

1, Durable metal structure machine body, floor standing model, double platform operation.
2, 5 Axis working, with R rotation axis.
3, 500*300*300mm traveling distance, traveling range can be customized under customer's requirement.
4, Single soldering iron the moving range has many options depends on the product dimension, also can customized to double or tripple double soldering irons.
5, Support many welding method, point welding, drag welding,and other functions.
6, Teach pandent programing, manual setting all the welding points, also support CAD drawing import.
7, Using high quality Taiwan Hiwin brand Linear Guide, ensure the moving precision.
8, The machine adopts Stepper motor and timing belt control.
Specification:
| Model | HS-S5331R | HS-S6331R | |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y1/Y2/Z working range | 500*300*300*100mm | 600*300*300*100mm | |
| R axis | 360degree | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 65kg | 70kg | |
| Machine dimension | 715*585*800mm | 815*685*800mm | |
Main machine configuration:
1, Double soldering Iron, double Y working platform
2, Handheld teach pendant programmer
3, Heating controller
4, Broken tin controller
5, Solder pen assembly
6, Welding tip
7, Tin out components
8, Cleaning box
