products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Glue Dispensing Machine
Created with Pixso.

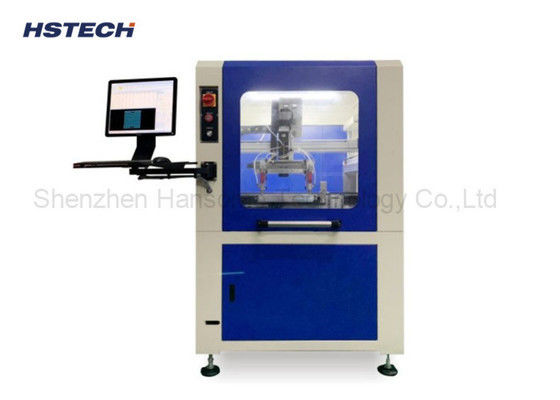

Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating

Name

Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating

Brand Name: HSTECH
Model Number: HS-CC300
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 100 sets per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,TUV
Product Name:
3Axis Selective Coating Machine

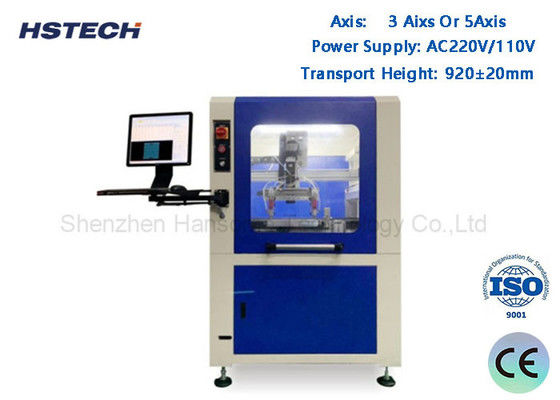

Axis:
3 Aixs Or 5Axis
Power Supply:
AC220V/110V
Transport Height:
920±20mm
Machine Weight:
600kg
Machine Dimension:
1060x1200x1700mm
Packaging Details:
Wooden case, with foam inside
Supply Ability:
100 sets per month
Highlight:

±0.02mm Accuracy Selective Conformal Coating Machine

,

Fuji Servo Motor PCB Coating Machine

,

Automatic Width Adjustment Glue Dispensing Machine

Product Description
Automatic Selective Conformal Coating Machine For PCBA SMT Process HS-CC300
This automatic selective conformal coating machine is specifically designed for PCBA SMT processes, offering precision coating with high reliability and stability for various PCB types.
Key Features
  • X, Y, Z axis drive platform with precision ball screw and Fuji servo motor
  • Selective coating capability for various PCB types
  • Multiple coating patterns: straight line, circle, and arc dispensing
  • Effective edge coating that eliminates spray shadow effect
  • High precision accuracy: ±0.02mm
  • High-speed, reliable transmission and control system
  • Dual-valve system for automatic spray and coating switching
  • Smart automatic width adjustment function
Machine Specifications
Specification Details
Product Name Selective conformal coating machine
Model HS-CC300
Transmission Height 920±20mm
Conveyor Width 50-450mm/or customized
Transmission L to R, or R to L
Component Height Up and down max 100mm
Size of PCB Board Edge ≥5mm
Transport Speed 0-12000mm/min
3 Axis Drive Speed 800mm/s
Repeat Accuracy ±0.02mm
Storage Programs Up to 1000
Power Supply AC220/110V
Air Pressure 4-kgf/cm²
Glue Tank 10L, manual stirring
Control Mode Industrial PC + Motion control card
Linear Guide Adjustment Intelligent adjust
Programming Mode Manual teaching
Communication Port SMEMA
Lighting Source Self-equipped lighting source
Detection Lighting Source Self-equipped
Software Windows + coating software
Driving Motor Stepper motor (2pcs)
3 Axis Driving Mode Servo motor + screw driver module + Electric Cylinder
Number of Rubber Valves 1 spray valve + 1 dispensing valve
Spray Width 3-20mm
Spraying Method Automatic
Total Power 2.6kW
Machine Body Stainless steel
Machine Weight 600kg
Machine Dimension 1060x1200x1700mm
Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating 0
Packaging Details
Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating 1 Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating 2 Automatic Selective Conformal Coating Machine with ±0.02mm Accuracy Fuji Servo Motor and Automatic Width Adjustment for PCB Coating 3
