LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor

Brand Name:	HSTECH
Model Number:	HS-SZ460
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Turn Conveyor

Other Name:

PCB Turning Board Handling Machine

Power Supply:

AC100-230V,50/60Hz

Control:

PLC

Operation:

LED Button

Signal:

SMEMA

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor

Introduction

This machine used in the SMT/PCBA production line for turn the PCB flow direction.

Features

1, Change the PCB flow direction in 90,180,270 degree.

2, Fixed rail selection based on customer's requirement.

3, Soft LED button control, traditional but easy operation.

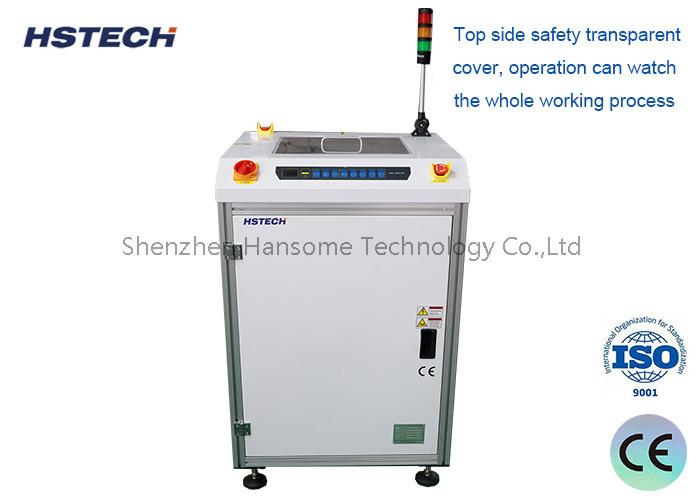

4, Top side safety transparent cover, operation can watch the whole working process.

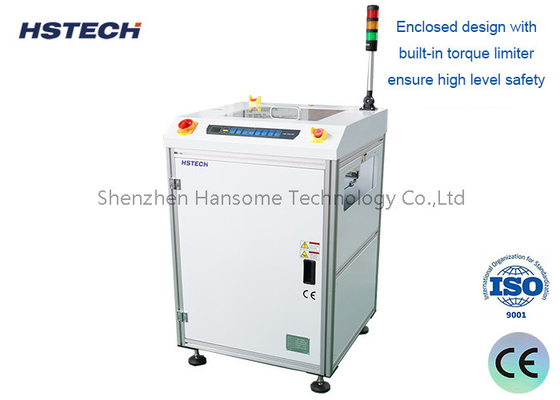

5, Enclosed design with built-in torque limiter ensure high level safety.

6, Hiwin linear guide and lead screw to make smooth and precise rotation.

7, Minimize the transfer gap between conveyors.

8, PCB traffic flows can be customized.

8, Smooth and parallel width adjustment(lead screw).

9,SMEMA compatible.

Specification

Product name	PCB Turn Conveyor
Transport height	910±20mm
Transportation direction	L~R, or R~L
Cycle time	Approx 5 seconds
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz,single phase
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	Min 0.4mm
Signal	SMEMA

Model	HS-SZ350	HS-SZ460
Efficient PCB length	5050~450350mm	5050~550460mm
Machine dimension	7007501200mm	8408901200mm
Weight	150kg	180kg

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor 0

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor 1

We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.

Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
