1.5M LED PCB Vacuum Loader with 5-6 Bar Vacuum Suction and Button or Touch Screen Control

Brand Name:	HSTECH
Model Number:	HS-GXB-L15
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

1.5M LED Board Vacuum Loader

Board Loading Time:

Approx 10 Seconds

Board Loading Method:

Vacuum Suction(nozzles)

Power Supply:

AC220V, Single Phase

Electrical Loader:

Max 300VA

Air Pressure:

5-6 Bar

Air Flow:

Max 30L/min

Suction Nozzle Qty:

8 Pcs

Suction Nozzles Moving:

Flexible Positioning

Vacuum Source:

Vacuum Generator

Transportation Height:

910±20mm(or Customized)

Transportation Direction:

L-R Or R-L

Control Model:

Button Or Touch Screen(optional)

LED PCB Dimension (L×W)～(L×W:

(80x80)～(1500x300) Mm

Machine Dimension (L×W×H):

1700x950x1250 Mm

Weight:

Approx.150kg

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

1.5M LED PCB Vacuum Loader

5-6 Bar Vacuum Suction PCB Handling Equipment

Button or Touch Screen Control LED Board Vacuum Loader

Product Description

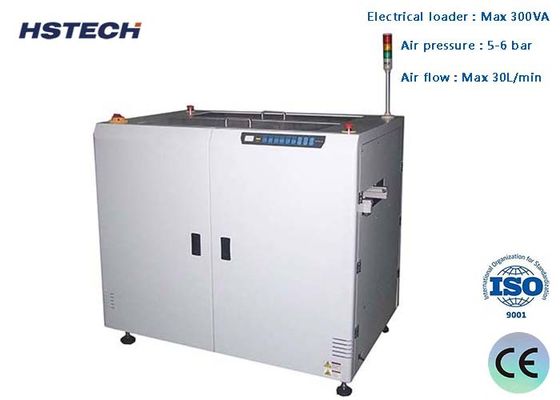

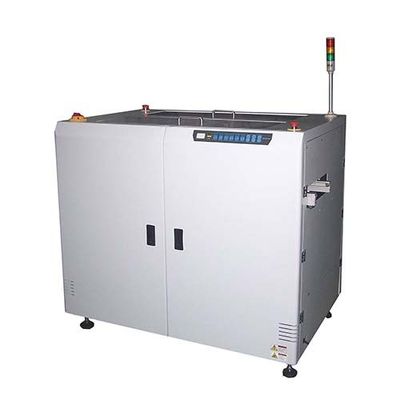

1.5M LED Board Vacuum Loader with 5-6 Bar Suction

Advanced vacuum loading system designed for 1.5M LED PCB board handling with optional button or touch screen control.

Product Overview

This industrial vacuum loader is specifically engineered for bare board vacuum loading operations, primarily optimized for 1.5M LED PCB board processing in manufacturing environments.

Key Features

Enclosed safety design for secure operation
Top-side machine cover for easy maintenance access
Optional button or touch screen control system
Panasonic PLC for reliable automation control
Flexible suction nozzles positioning
Manual width adjustment capability
Self-programmed error display with maintenance instructions
By-pass mode selection without PCB stack removal
SMEMA communication integration

Technical Specifications

Parameter	Specification
PCB Store Capacity	Store height 200mm, max weight less than 50kg
Board Loading Time	Approximately 10 seconds
Board Loading Method	Vacuum suction (nozzles)
Power Supply	AC220V, single phase
Electrical Loader	Max 300VA
Air Pressure	5-6 bar
Air Flow	Max 30L/min
Suction Nozzle Quantity	8 pieces
Suction Nozzles Movement	Flexible positioning
Vacuum Source	Vacuum generator
Transportation Height	910±20mm (or customized)
Transportation Direction	L-R or R-L
Control Mode	Button or touch screen (optional)
LED PCB Dimension (L×W)	(80×80)～(1500×300) mm
Machine Dimension (L×W×H)	1700×950×1250 mm
Weight	Approximately 150kg
