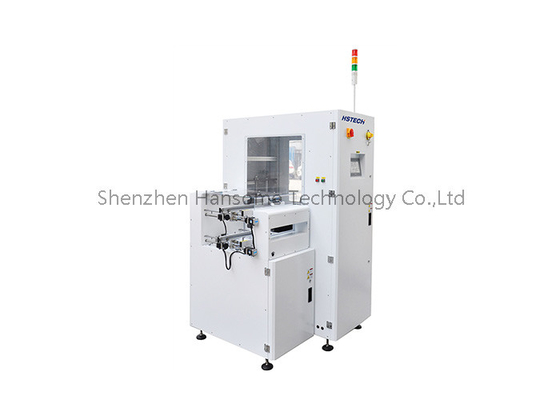

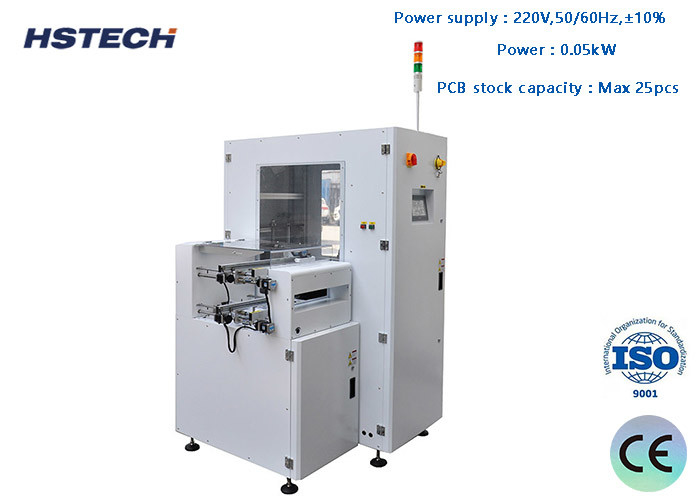

Touch Screen Vertical Buffer With Upper Conveyor Platform With SMEMA Compatible

Brand Name:	HSTECH
Model Number:	HS-HC250
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Vertical Buffer

Transport Height:

910±20mm

Transportation Direction:

L~R, Or R~L

Conveyor Transporting Speed:

Adjustable

Rail Fixed Side:

Front Side Or Rear Side

Operation Side:

Front Side

PCB Thickness:

Min 0.6mm

Pitch Selection:

1-4(10mm Pitch)

Power Supply:

220V,50/60Hz,±10%

Power:

0.05kW

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Product Description

Touch Screen Vertical Buffer With Upper Conveyor Platform With SMEMA Compatible

Description:

A Vertical Buffer is an industrial automation device used to temporarily store and manage materials, components, or products in a vertical orientation. It is commonly utilized in manufacturing and logistics environments to enhance workflow and optimize space.

Features:

Use friendly soft touch screen control panel.
FIFO,LIFO,Loader, unloader,Reject mode selected.
Fast, smooth and precise indexing.
Inner PCB rack to stock PCBs,Max can stock 25pcs PCBs.
Machine Panel will show NG or OK PCB for each layer.
Upper conveyor platform for double checking NG PCBs.
Threshold’s system provided.
SMEMA compatible.

Technical details:

Transport height	910±20mm
Transportation direction	L~R, or R~L
Board collecting	Lifting PCB rack
Conveyor transporting speed	Adjustable
Rail fixed side	Front side or rear side
Operation side	Front side
PCB thickness	Min 0.6mm
Pitch selection	1-4(10mm pitch)
Power supply	220V,50/60Hz,±10%
Power	0.05kW
PCB stock capacity	Max 25pcs
Magazine	No
Signal	SMEMA
Options	Automatic width adjustment.

Specification

Model	HS-HC250	HS-HC330	HS-HC390	HS-HC460
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Machine dimension	125012001600mm	146013601600mm	161014801600mm	161016201600mm
Weight	200kg	230kg	270kg	300kg

Applications

Manufacturing:
Used in assembly lines to buffer components between different stages, allowing for efficient processing and reducing bottlenecks.
Logistics and Warehousing:
Employed for storing pallets or boxes vertically, enhancing storage capacity and facilitating easy access.
Food and Beverage Industry:
Utilized for buffering ingredients or packaged products, ensuring a steady supply to production lines.
Automotive Industry:
Commonly used to manage parts and components in automotive assembly processes.

Operation Diagram
