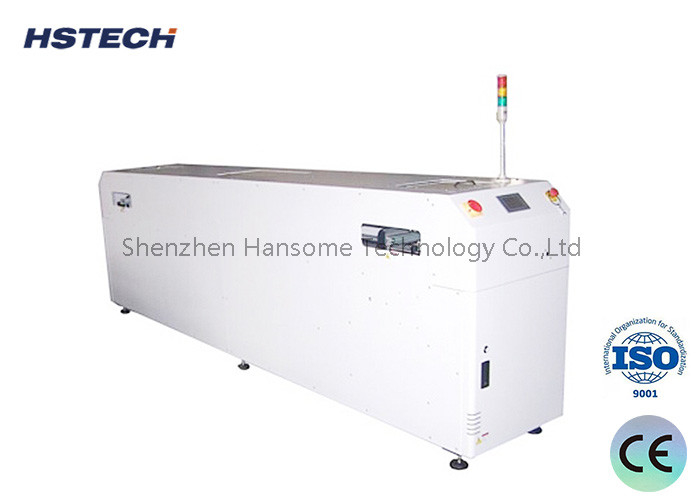

PLC Control Stepper Motor Shuttle Conveyor For Smt Assembly Equipment

Brand Name:	HSTECH
Model Number:	HS-500SC
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Shuttle Conveyor

Color:

White

Power Supply:

Meanwell Driver,AC100-240V

PLC:

MITSUBISHI

Relay:

Schneider

Optoelectric Switch:

OMRON

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

Stepper Motor Shuttle Conveyor

PLC Control Shuttle Conveyor

Smt Assembly Equipment Shuttle Conveyor

Product Description

PLC Control Stepper Motor Shuttle Conveyor for Smt Assembly Equipment

This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.

Specification

Model	HS-500SC
PCB dimension	(5050)~(500460)
Power supply	AC100-240V meanwell brand
Transport height	900±20mm
Transport direction	L to R, or R ro L,(optional)
PCB thickness	Min 0.4mm
Machine dimension	600(1500~4800)1100mm
Weight	150~350kg

Features

1, PLC control system.

2, With the function for transports the boards from 1 line to 2 lines, or combined 2 lines to 1 line, and by-pass function.
3, Using stepper motor translation accurate alignment
4, Buffering slow down design more stable and precision
5, Width adjustable, enclosed type case for safety
6, Standard SMEMA
