Flexible Turnover 180 Degree ESD 7mm Belt PCB Inverter Machine With 3 Color Display

MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Production Name:

PCB Inverter Machine

Power Supply:

AC100-230V,single Phase,max300A

Optoelectronic Switch:

Omron

Height Adjustment:

Feet Cup

Display:

3 Color Display

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

50 sets per month

Highlight:

Flexible Turnover 180 Degree PCB Inverter Machine

ESD 7mm Belt PCB Handling Equipment

3 Color Display PCB Turnover Machine

Product Description

Flexible Turnover 180 Degree ESD 7mm Belt PCB Inverter Machine With 3 Color Display

This automated PCB inverter machine performs 180-degree rotation to enable double-sided PCB processing with precision and safety. Featuring a 3-color display and ESD-safe belt system, it ensures efficient production line integration.

Machine Overview

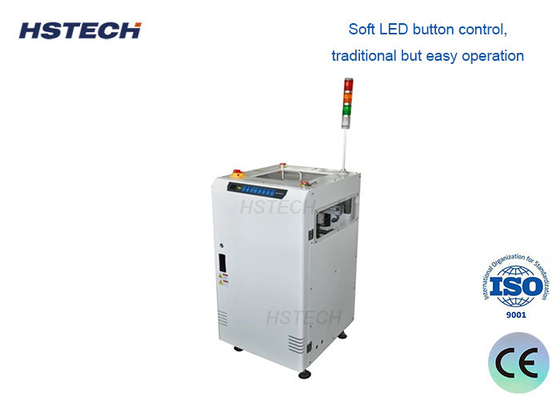

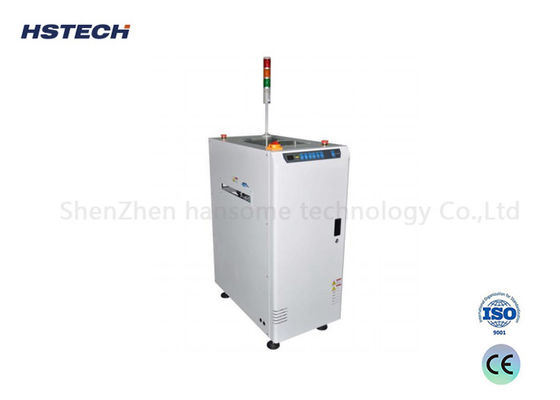

The PCB Inverter Machine is an automated material handling device designed to safely, smoothly, and precisely flip PCBs 180 degrees from front-side up to back-side up orientation (or vice versa) for complete double-sided processing.

Primary Applications

Double-Sided PCB Processing: Enables complete SMT and assembly line operations for both sides of circuit boards
Process Integration: Connects equipment requiring different PCB orientations within production lines
Quality Control: Facilitates inspection, testing, and rework of PCB bottom surfaces
Automated Operation: Eliminates manual handling risks including electrostatic damage, physical impacts, and contamination

Key Features

180-degree PCB rotation for double-sided production
4-position pitch selection capability
Touch screen control with MITSUBISHI PLC
3-color status light display system
High-precision linear guide modules
Flexible turnover with ball screw integration for smooth equipment connection
Full stainless steel construction for durability and long lifespan
SMEMA communication compatibility

Technical Specifications

Specification	Details
Machine Function	180-degree PCB inverting
Power Supply	AC100-230V, single phase, 50/60Hz
Transport Belt	ESD 7mm belt
PCB Dimension Range	(50×50) - (500×460)mm
Air Supply	4-6 bar, maximum 10L/min
Transport Height	900±20mm
Transport Direction	Left-Right or Right-Left (optional)
PCB Thickness	Minimum 0.4mm
Up/Down Pitches	1-4 (10mm step)
Cycle Time	Approximately 20 seconds
Communication	SMEMA
Machine Dimensions	600×900×1200mm
Weight	140kg

Key Advantages

Enhanced Automation: Enables fully automated, continuous 24/7 production operations
Quality Assurance: Eliminates scratches, drops, bending, and electrostatic damage from manual handling
Increased Efficiency: Significantly faster turnover speed compared to manual operation
Space Optimization: Compact design for efficient production line layout
Production Flexibility: Programmable operation for easy adaptation to different product requirements
