| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-HC250 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Vertical Buffer | Transport Height: | 910±20mm |
|---|---|---|---|
| Transportation Direction: | L~R, Or R~L | Board Collect Time: | Each Approx 6 Seconds |
| Magazine Change Over Time: | Approx 30seconds | Track Fixed Side: | Front Side |
| PCB Thickness: | Min 0.6mm | Pitch Selection: | 1-4(10mm Pitch) |
| Power Supply: | 220V,50/60Hz,±10% | Power: | 0.05kW |
| PCB Stock Capacity: | Max 25pcs | Magazine: | No |

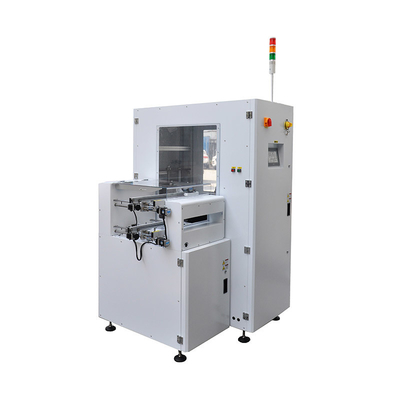

Description
This unit is used as a buffer between SMD machine and Inspection equipment
Features

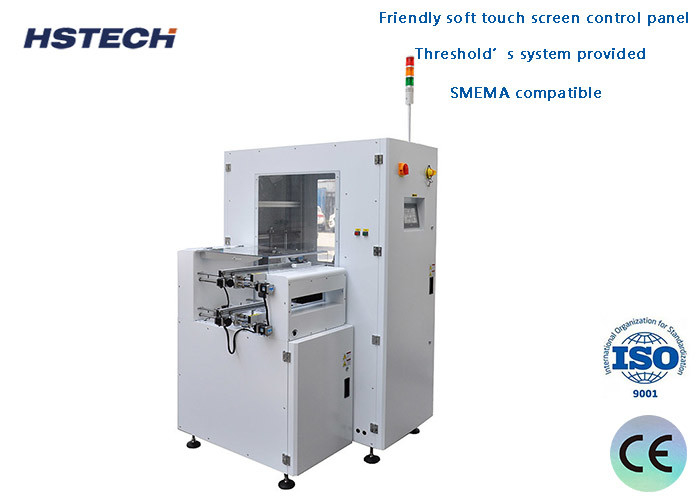

1.Use friendly soft touch screen control panel.
2.FIFO,LIFO,Loader, unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4.Inner PCB rack to stock PCBs,Max can stock 25pcs PCBs.
5. Machine Panel will show NG or OK PCB for each layer.
6.Upper conveyor platform for double checking NG PCBs.
7. Threshold’s system provided.
8. SMEMA compatible.
Technical details
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board collecting | Lifting PCB rack |
| Conveyor transporting speed | Adjustable |
| Rail fixed side | Front side or rear side |
| Operation side | Front side |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| PCB stock capacity | Max 25pcs |
| Magazine | No |
| Signal | SMEMA |
| Options |
Automatic width adjustment.
|
Specification
| Model | HS-HC250 | HS-HC330 | HS-HC390 | HS-HC460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
| Weight | 200kg | 230kg | 270kg | 300kg |
