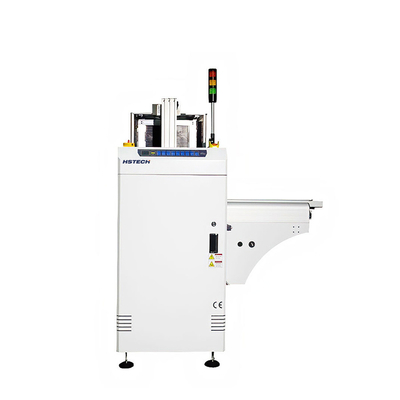

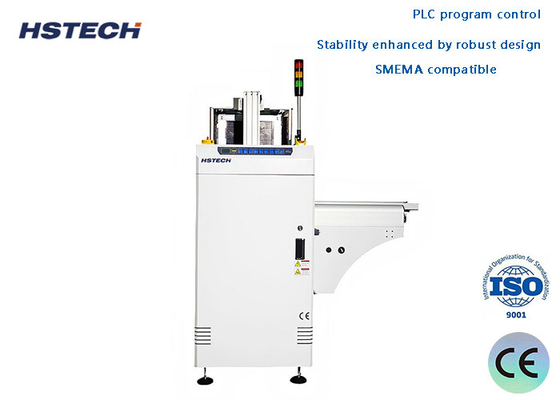

| Product Name: | 90 Degree L Type PCB Unloader | Transport Height: | 910±30mm |
|---|---|---|---|
| Transportation Direction: | L~R, Or R~L | Board Collect Time: | Each Approx 6 Seconds |
| Magazine Change Over Time: | Approx 30seconds | Track Fixed Side: | Front Side |
| PCB Thickness: | Min 0.4mm | Pitch Selection: | 1-4(10mm Pitch) |
| Conveyor Speed: | 0.5-20M/min Or Customized |
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
Technical details - 90degree L type PCB unloader
| Function | This unit is used for loading the PCBs,and transporting the PCB on the SMT production line. |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Specification
| Model | HS-LD330 |
| Efficient PCB length | 50*50~455*330mm |
| Machine Size(L*W*H) | 900*1223*1450mm |
| Magazine size | 460*400*563mm |
| Weight | 220kg |
Machine drawing
