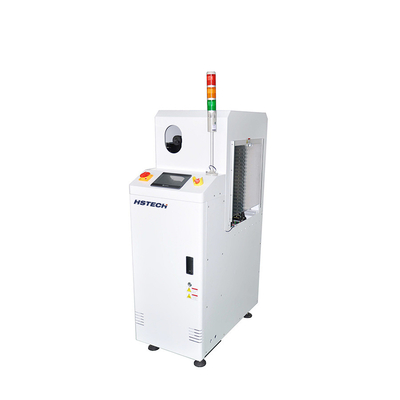

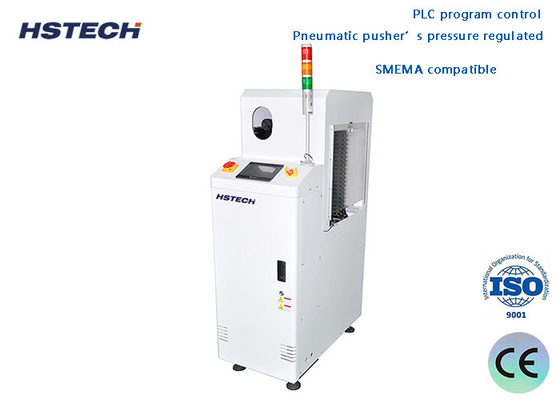

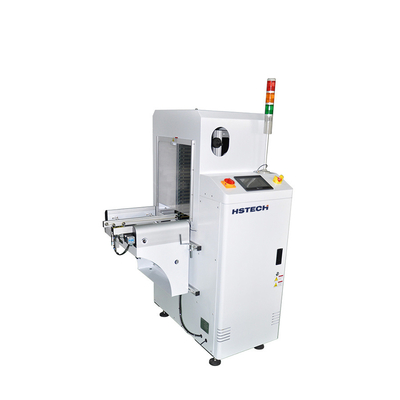

Fast Smooth And Precise Indexing Pneumatic Clamps Provided For Magazine Alignment PCB Buffer

Brand Name:	HSTECH
Model Number:	HS-NK250
MOQ:	1set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Buffer

Transport Height:

910±20mm

Transportation Direction:

L~R, Or R~L

Board Collect Time:

Approx 20 Seconds

Magazine Change Over Time:

Approx 30seconds

Track Fixed Side:

Front Side

PCB Thickness:

Min 0.6mm

Pitch Selection:

1-4(10mm Pitch)

Power Supply:

220V,50/60Hz,±10%

Power:

0.05kW

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

Description

This unit is used as a buffer between SMD machine and Inspection equipment

Features

1. Use friendly soft touch LED membrane control panel.

2. FIFO,LIFO,Loader, Unloader,Reject mode selected.

3. Fast, smooth and precise indexing.

4. Pneumatic clamps provided for magazine alignment.

5. Pneumatic pusher’s pressure regulated.

6. Threshold’s system provided.

7. Additional magazines buffering capacity available upon request.

8. SMEMA compatible.

Technical details

Transport height	910±20mm
Transportation direction	L~R, or R~L
Board cycle time	Approx 20 seconds
Magazine change over time	Approx 30seconds
Track fixed side	Front side
Operation side	Front side
PCB thickness	Min 0.6mm
Pitch selection	1-4(10mm pitch)
Power supply	220V,50/60Hz,±10%
Power	0.05kW
Air pressure	4-6Bar
Air consumption	Max 10L/min
Number of magazines	Upper:1 magazine, Bottom side:1 magazines
Signal	SMEMA
Options	1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement.

Specification

Model	HS-HC250S	HS-HC330M	HS-HC390L	HS-HC460XL
Efficient PCB length	5050~350250mm	5050~455330mm	5050~530390mm	5050~530460mm
Magazine size	355320563mm	460400563	535460570mm	535530570mm
Machine dimension	125012001600mm	146013601600mm	161014801600mm	161016201600mm
Weight	170kg	230kg	300kg	330kg
