| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-LD250 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

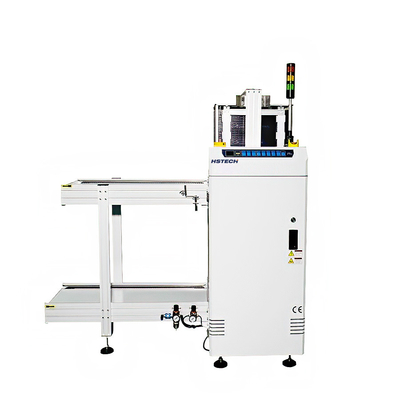

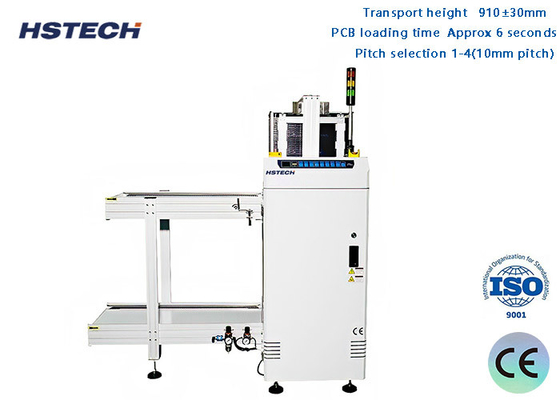

| Product Name: | PCB Magazine Loader | Transport Height: | 910±20mm |
|---|---|---|---|
| Transportation Direction: | L~R, Or R~L | Board Collect Time: | Approx 20 Seconds |
| Magazine Change Over Time: | Approx 30seconds | Track Fixed Side: | Front Side |
| PCB Thickness: | Min 0.6mm | Pitch Selection: | 1-4(10mm Pitch) |
| Power Supply: | 220V,50/60Hz,±10% | Power: | 0.05kW |
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
Technical details
| Function | This unit is used for loading the PCBs,and transporting the PCB on the SMT production line |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Specification
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Operation diagram
About Packaging
