Drawer Feeding Double PCBA Router Machine Can Combined As One Platform

Brand Name:	HSTECH
Model Number:	CM-610
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCBA Router Machine

Feeding:

Drawer Feeding

Working Platform:

Double,can Combined As One Platform

Function:

PCBA Pin Board Separating

Material:

Sheet Matel

Color:

Orange,gray

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

One Platform PCBA Router Machine

Double Drawer Feeding PCBA Router Machine

Product Description

Drawer Feeding Double Can Combined As One Platform PCBA Router Machine

Introduction

PCBA Router (Printed Circuit Board Assembly Depaneling Machine) is an automated device used to cut and separate PCB (Printed Circuit Board) or PCBA (Printed Circuit Board Assembly). It is mainly used in the electronics manufacturing industry to ensure that the depaneling process is efficient, accurate and does not damage components.

Features

1, Milling type PCB Router with high precision and high cleanliness,dual parallel work platform and single pindle.

2, Low footprint,drawer type platform is designed to avoid the pollution of cleanliness room.

3, Top side dust collection with higher efficiency than the bottom side,and lower noise.

4, Dual platform design, easy to operate and maintenance.

5, Application for 350*350mm pcba, bigger size can be customized.

6, Upgrade with robot to realize inline function.(option)

Specification

Model	CM-610	CM-610max
Max PCB size	350x350mm	450x450mm
Min PCB size	5x5mm
PCB thickness	0.4~6mm
Work table height	850mm
Loading mode	Manual feeding and release
PCB positioning	Magnetic thimble or jig
Cutting spindle/speed	Sycotec,made in Germany,5000-60000rpm
Cooling type	Self cooled type
Break knife inspection	Yes
Cutting speed	1-100mm/s
Cutting accuracy	±0.05mm
Milling kit	φ0.8~φ3.0 right rotation,shank tungsten steel
Repeating positioning accuracy	±0.02mm
Coordinate moving speed	1000mm/s
Precedure programming	GERBER drawing import or editing through visual system
Air supply	5-8KG/cm³
Power supply	AC380V±5%,50/60Hz,3KW
Machine dimension	125010001650mm	135011001650
Machine weight	Appro 900kg

Machine dimension

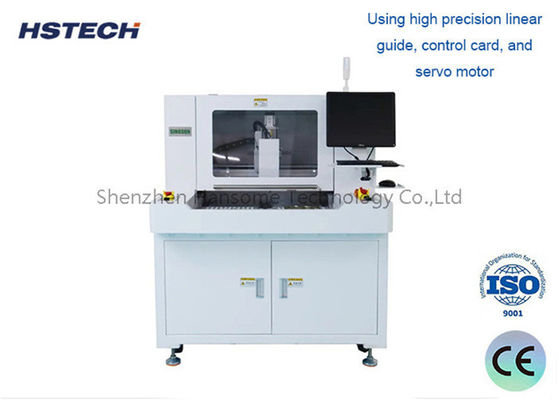

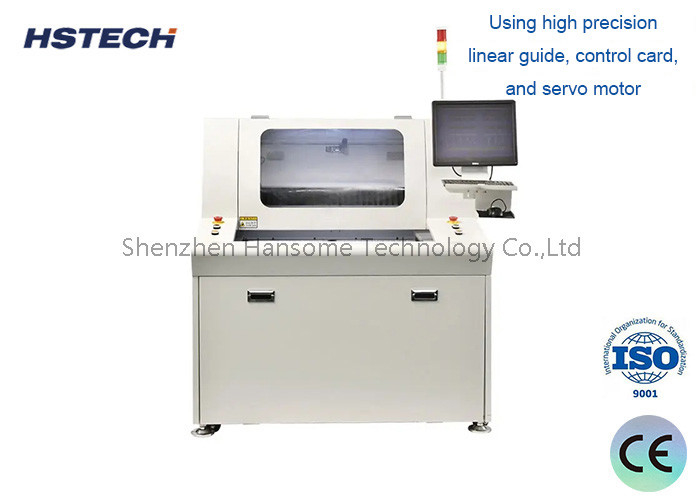

Drawer Feeding Double PCBA Router Machine Can Combined As One Platform 0

Machine details

Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.

Drawer Feeding Double PCBA Router Machine Can Combined As One Platform 1

Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)

Drawer Feeding Double PCBA Router Machine Can Combined As One Platform 2

Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.

Drawer Feeding Double PCBA Router Machine Can Combined As One Platform 3

Drawer Feeding Double PCBA Router Machine Can Combined As One Platform 4
