| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 10~12 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Chip Mounter Nozzle Cleaner | Power Supply: | 200W |
|---|---|---|---|
| Machine Color: | White | Nozzle Capacity: | Max 30pcs |
| Machine Weight: | 45kg | Machine Size: | 598*396*365mm |

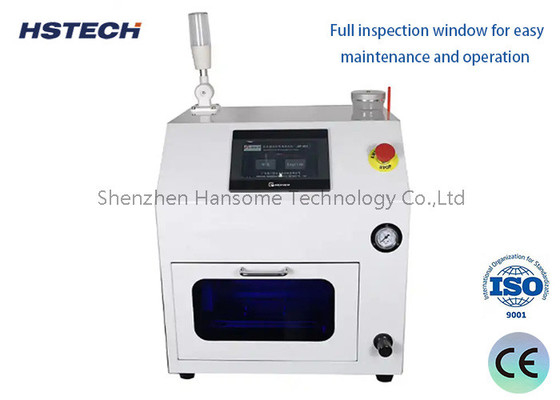

Touch Screen Control Max Clean 30 Nozzles Automatic SMT Nozzle Cleaning Machine
Specification
| Model | HS-801 |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
Product Features
1, Default place 30 nozzles,reduce time to chage nozzles by using the nozzle holder, achieve high efficiency.
2, Can compatible with nozzles of PANASONIC,FUJI,JUKI,SIPLACER,YAMAHA,SAMGUNG mounting machines.
3, Work with the compressor air for wahsing and drying.
4, Full inspection window for easy maintenance and operation.
5, Using Industrial pure water, not harmful for all types of nozzles and reflector panel.
6, With a malfunction alarm and emergency braking system, with overload protection system.
7, The machine with streamline design, elegant appearance;
8, Human design, press external buttons to achieve start and stop;
9, Touch screen + PLC distributed control, stable and reliable performance;
10, Centralized waste collection, easy maintenance.
Machine details
Cleaning performance
About Packaging
