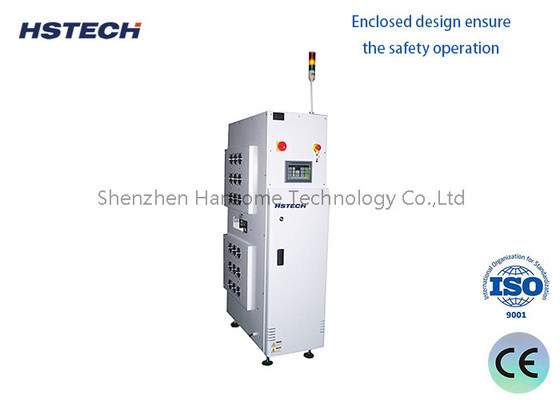

Panasonic PLC Control Smart Touch Screen Control Panel Vertical PCB Buffer Machine

Brand Name:	HSTECH
Model Number:	HS-330BF
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Vertical PCB Buffer Machine

Application:

Buffering PCBs On SMT Production Line

PCB Dimension:

L(50*50)-(450*330)mm

Air Supply:

4-6bar,max 15L/min

Material:

Stainless Steel

Cooler:

4 Groups

Exhaust Port:

2 Pcs

Warranty:

1 Year

Packaging Details:

Wooden package, with foam

Supply Ability:

100 sets per month

Highlight:

Vertical PCB Buffer Machine

Touch Screen PCB Buffer Machine

PLC Control PCB Buffer Machine

Product Description

Touch Screen Control PCB Buffer Machine with 25 Layers

Introduction

This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual

signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the

signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.

Features

1, Panasonic PLC control.

2, Smart touch screen control panel.

3, With FIFO and By-pass function, or cutomized to multiple function.

4, Using servo motor for accuracy positioning.

5, Hiwin leadscrew for width adjustment, smooth and stable.

6, Smooth magazine lifting device, precision servo driving.

7, Optional fan and exhaust port for heat dessipation.

8, English operation interface.

9, The whole machine is small volume, won't take much factory space.

10, SMEMA communication interface, can be connected with other automation equipment.

11, Three color LED display for machine status.

Specification

Model:		HS-BF330
Voltage:		AC220V,50/60Hz
PCB Dimension:		L(5050)-(450330)mm
Air supply:		4-6 bar,max 15L/min
Transport height:		900±20(mm)
Transport Direction:		L-R or R-L (optional)
PCB thickness:		min 0.46mm
Up/down pitches:		1-4(10mm step)
Store Capacity		25pcs or customized
Cycle time		Around 15 seconds
Communication		SMEMA
Optional		Fan, observation window
Certification		CE
Machine Dimension:		60011501560mm
Gross Weight:		280kg
