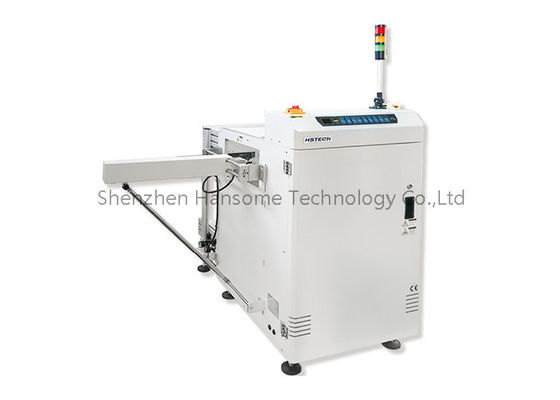

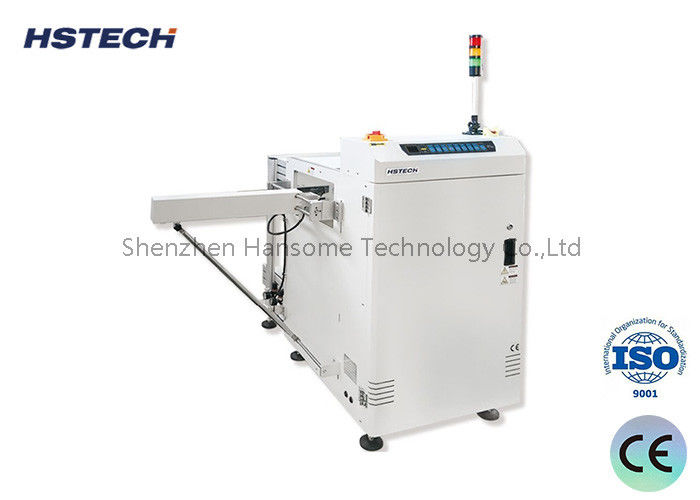

High Speed PCB Loading PCB Handling Equipment with Cooling Soldering and White Surface

Brand Name:	HSTECH
Model Number:	HS-390CLD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Destacker & Loader Combined Machine

Color:

Computer White

Pcb Direction:

L-R Or R-L(optional)

Material Feature:

Stainless Steel

PLC:

MITSUBISHI

Driver:

Meanwell

Condition:

New

Packaging Details:

Wooden package,with foam

Supply Ability:

100 sets per month

Product Description

High Speed PCB Loading PCB Handling Equipment with Cooling Soldering and White Surface

Features

1.Module design.

2.Stability enhanced by robust design.

3.Economic design arm test.

4.Smooth and parallel width adjustment.

5.Three magazine racks application.

6.Top and bottom pneumatic clamps to secure magazinerack.

7.No PCB breakage guaranty during loading&unloading.

8.SMEMA compatible.

Specification

Model	HS-250CLD	HS-330CLD	HS-390CLD
PCB dimension	(50x50)~(350x250)	(50x50)~(455x330)	(50x50)~(530x390)
Magazine size	355x320x565	460x400x565	535x460x565
Machine size	1700x780x1200	2000x860x1200	2100x920x1200
Loading time	6 seconds
Magazine changeover time	20 seconds
Air pressure	4-6 bar, max 10L/min
Transport height	920±20mm
Transport direction	left to right, or right to left
PCB thicknes	Min 0.4mm
Magazine quantity	2 pcs
Step pitches	1-4(10mm pitches)
Weight	Approx 200kg	Approx 220kg	Approx 240kg

High Speed PCB Loading PCB Handling Equipment with Cooling Soldering and White Surface 0

About Us:

Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.

We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.

We have more than 10 years' professional SMT industry experience. With strict production,inspectiondebugging and packaging process, we insist on providing clients with good service pre-sales, in-salesand after-sales services. We have professional QC person to check the quality of the equipment andspare parts. After manufacturing, all equipment will be carefully tested and debugged before shipment.
