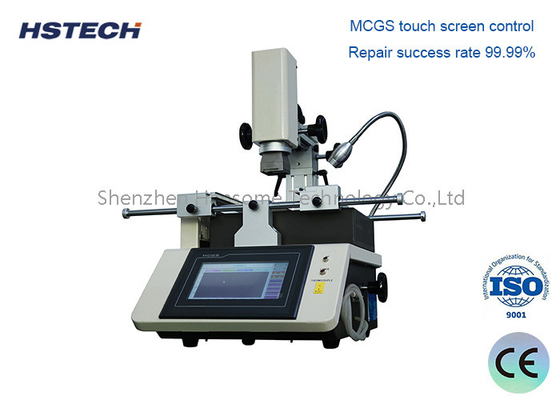

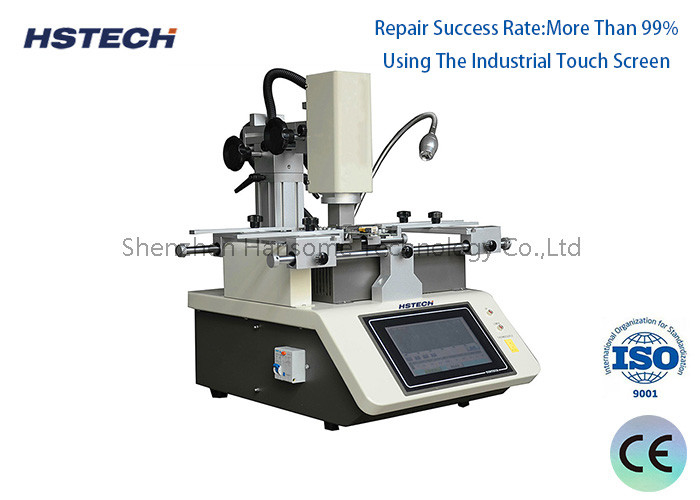

High Precision PCB Handling Equipment for Mobile Phone Repair

Brand Name:	HSTECH
Model Number:	HS-700
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Mobile Phone BGA Rework Station

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Highlight:

mobile phone repair pcb handling equipment

High Precision PCB Handling Equipment

Product Description

High Precision PCB Handling Equipment for Mobile Phone Repair

Specification

Mobile Phone BGA Rework Station	Model:HS-700
Power Supply	AC 100V / 220V±10% 50/60Hz
Total power	2600W
Heater power	Top heater 1200W(Max), bottom heater 1200W(Max)
Electric material	Driving motor + smart temp. controller + color touch screen
Temperature control	high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃)
Sensor	1pcs
Locating way	V shape PCB support + external universal fixture + laser light for centering and positioning
Overall dimension	L450mmW470mmH670mm
PCB size	Max 140mm160mm Min 5mm5mm
BGA size	Max 50mm50mm Min 1mm1mm
Applicable PCB thickness	0.3 - 5mm
Mounting accuracy	±0.01mm
Weight of machine	30KG
Mount chip weight	150g
Working modes	Five: Semi-auto/Manual/Remove/Mount/Weld
Usage Repair	chips / phone motherboard etc

About Packaging

Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.

We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.

We have more than 10 years' professional SMT industry experience. With strict production,inspectiondebugging and packaging process, we insist on providing clients with good service pre-sales, in-salesand after-sales services. We have professional QC person to check the quality of the equipment andspare parts. After manufacturing, all equipment will be carefully tested and debugged before shipment.
