| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C600 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

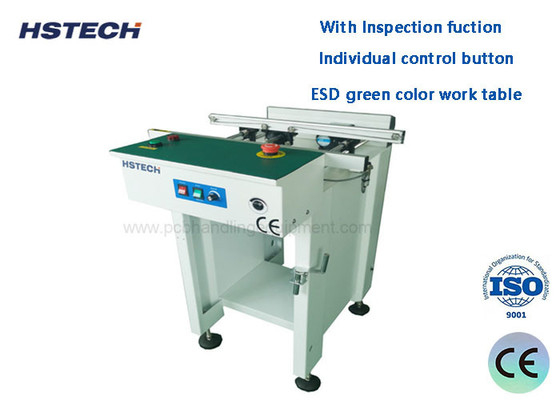

LED Button Control ESD Belt PCB Handling Conveyor Max 390mm PCB Width
Features:
1. Thickness stable stainless steel machine body.
2. Max 390mm PCB width, hand crand width adjustment.
3. Transporting speed adjustment by Knob.
4. ESD green color work table.
5. Aluminum alloy transporting rail.
6. LED button control, speed adjustment motor.
7. Optional function available, tower light, inspection, dust cover, etc.
8. Customized requirement available.
9. Length available, 600mm, 1000mm, 1500mm, or optional.
10. SMEMA signal for inline connection.
Specification:
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
