Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly

Brand Name:	HSTECH
Model Number:	HS-ZJ350
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Product Name:

90 Degree PCB Turn Conveyor

Warranty:

1 Year

Control:

Touch Screen

PLC:

Panasonic

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Application:

Electronic Assembly

Weight:

220/240KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly

Application:

This PCB Handling Equipment is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)

Features:

Enclosed design with built-in torque limiter ensure high level of safety.

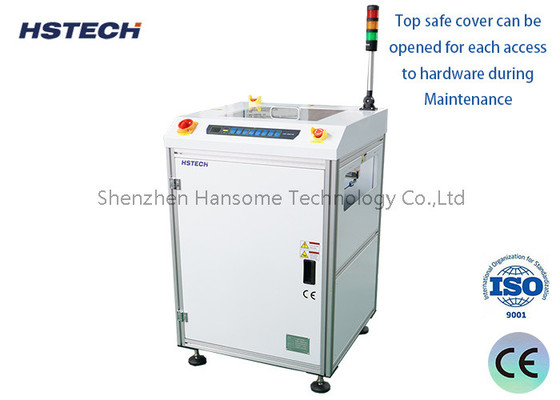

Top safe cover can be opened for each access to hardware during Maintenance.

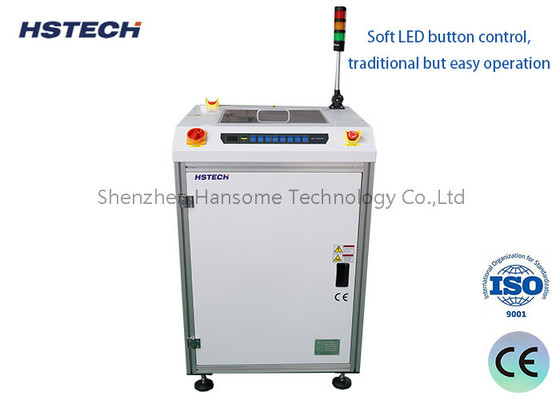

Use friendly control button.
Smooth and precise rotation.
Minimize the transfer gap between conveyors.
PCB traffic flows can be customized.
Smooth and parallel width adjustment(lead screw).
SMEMA compatible.
PLC program control.
The belt is easy to replace.
Thick bottom design to prevent shifting
Anti-jamming design

Technical Details:

Function	This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)
Transport height	910±20mm
Transportation direction	L~R, or R~L
Cycle time	Approx 5 seconds
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz,single phase
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	Min 0.4mm
Signal	SMEMA

Specification:

Model	HS-ZJ350	HS-ZJ500
Efficient PCB length	5050~500350mm	5050~500500mm
Machine dimension	7007501200mm	8408901200mm
Weight	150kg	180kg

Machine drawing:

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly 0

About Packaging:

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly 1

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly 2

Touch Screen PCB Handling Equipment 90 Degree PCB Turn Conveyor for Electronic Assembly 3

Tags:

SMT PCB Handling Equipment

Board handling Equipment

Circuit Board Handling Equipment
