| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SZ350 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | PCB Turn Conveyor | Suitable PCB Dimension: | 50*50~450*350mm |
|---|---|---|---|
| Power Supply: | AC100-230V | PLC: | Panasonic |
| Sensor: | Sick | Control: | Touch Screen |
| Diamension: | L220*W130*H315 | Turn Degree: | 90 Degree, 180degree, 270degree |
| Signal: | SMEMA |

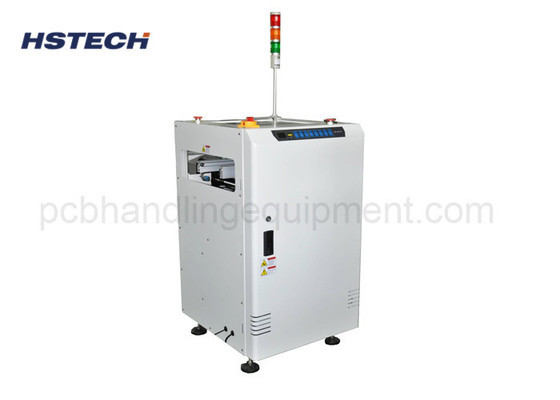

Touch Screen 90 180 270 Degree PCB Handling Equipment Turn Conveyor With SMEMA Compatible
Introduce
working principle
The trolley docks with the host machine and connects the PCB and puts it in place → the track retracts into place → 90 degrees rotates accurately into place → the track extends forward and is in place → the board is taken out and completed → the track is retracted and in place → 90 degree rotation → the track is extended and in place to wait for the connection plate.
l Various non-standard models can be customized according to users’ PCBs of different sizes and special needs;
l Reason for your choice: PCB flow direction needs to be changed, filtered and diverted, and two lines merged into one. This equipment is purely automated equipment designed to save you manpower and reduce production costs.
l Suitable for fully automatic 90-degree turn docking of various SMT, DIP or assembly production lines.
l This machine has two modes: pass-through and rotation. One-click conversion and conversion between the two modes are very convenient and can be easily realized by simply operating on the human-machine interface. The through and corner functions can also be used to screen NG & OK products when selected at the same time.
l Using international brand pneumatic components and reasonable structures, the machine components and overall service life are greatly extended.
l It adopts high-performance PLC control, which has the characteristics of stable operation and stronger anti-electromagnetic interference ability.
l Large-screen human-machine interface, human-machine dialogue is very convenient and simple, and status monitoring during production is clear.
l High-precision ball screw + precision linear bearing + high-hardness hard chrome rod + stepper motor, the machine has high repeatability + no superposition error.
l The entire machine frame adopts δ2MM cold-rolled steel plate laser processing + CNC stamping + carbon dioxide protection welding + plastic spraying process + fine assembly process to create high-quality production equipment.
l Standard equipped with industry standard signal: SMEMA, which can be operated online and automatically with other equipment;
Features
1. Enclosed design with built-in torque limiter ensure high level
of safety.
2. Top safe cover can be opened for each access to hardware during
Maintenance.

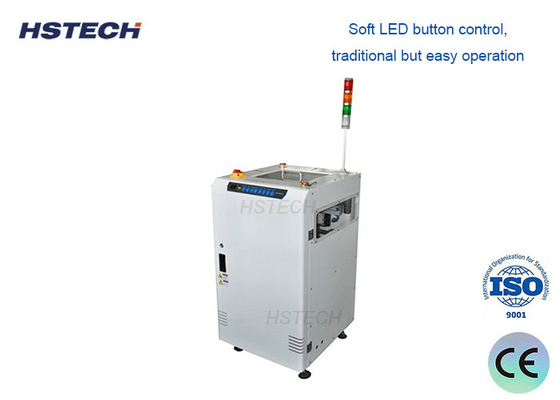

3. Use friendly control button.
4. Smooth and precise rotation.
5. Minimize the transfer gap between conveyors.
6. PCB traffic flows can be customized.
7. Smooth and parallel width adjustment(lead screw).
8.SMEMA compatible.
Specification
| Function | This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree) |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
Product Details
