| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-500SC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package,with foam |
| Delivery Time: | 10~12 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Shuttle Conveyor | Color: | White |
|---|---|---|---|
| Power Supply: | Meanwell Driver,AC100-240V | PLC: | MITSUBISHI |
| Relay: | Schneider | Optoelectric Switch: | OMRON |
| Singal: | SMEMA |

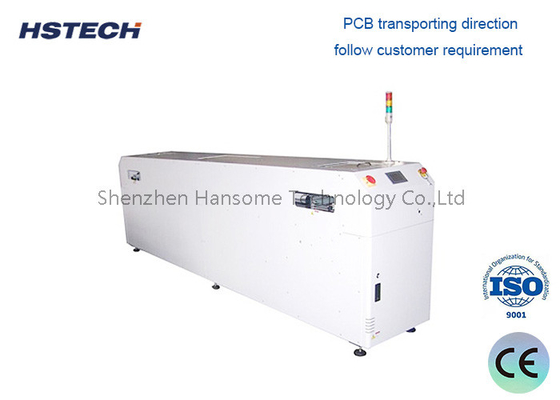

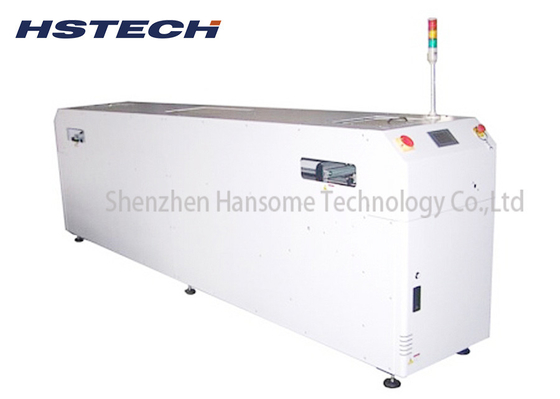

PLC Control Buffering Slow Down Design PCB Board Handling Equipment Type Case
This machine also called PCB translation machine,which is used for transporting boards from one line into two lines or vice versa,the orientation of the board won't change during traversing.
Specification
| Model | HS-500SC |
| PCB dimension | (50*50)~(500*460) |
| Power supply | AC100-240V meanwell brand |
| Transport height | 900±20mm |
| Transport direction | L to R, or R ro L,(optional) |
| PCB thickness | Min 0.4mm |
| Machine dimension | 600*(1500~4800)*1100mm |
| Weight | 150~350kg |
Features
1, PLC control system.
2, With the function for transports the boards from 1 line to 2 lines, or combined 2 lines to 1 line, and by-pass function.
3, Using stepper motor translation accurate alignment
4, Buffering slow down design more stable and precision
5, Width adjustable, enclosed type case for safety
6, Standard SMEMA
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
