| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C600 |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | SMT Conveyor | Other Name: | Link Conveyor |
|---|---|---|---|
| Transporting Length: | 600 Mm | Transport Belt: | ESD Flat Belt |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

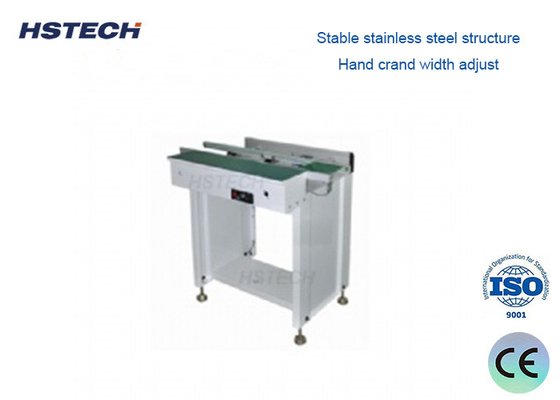

Professional PCB Handling Equipment with SMEMA Signal and Customized Requirement for SMT Line
Features
1, Thickness stable stainless steel machine body.
2, Max 390mm PCB width, hand crand width adjustment.
3, Transporting speed adjustment by Knob.
4, ESD green color work table.
5, Aluminum alloy transporting rail.
6, LED button control, speed adjustment motor.
7, Optional function available, tower light, inspection, dust cover, etc.
8, Customized requirement available.
9, Length available, 600mm, 1000mm, 1500mm, or optional.
10, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
