| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-330BF |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Vertical PCB Buffer Machine | Application: | Buffering PCBs On SMT Production Line |
|---|---|---|---|
| PCB Dimension: | L(50*50)-(450*330)mm | Air Supply: | 4-6bar,max 15L/min |
| Material: | Stainless Steel | Cooler: | 4 Groups |
| Exhaust Port: | 2 Pcs | Warranty: | 1 Year |

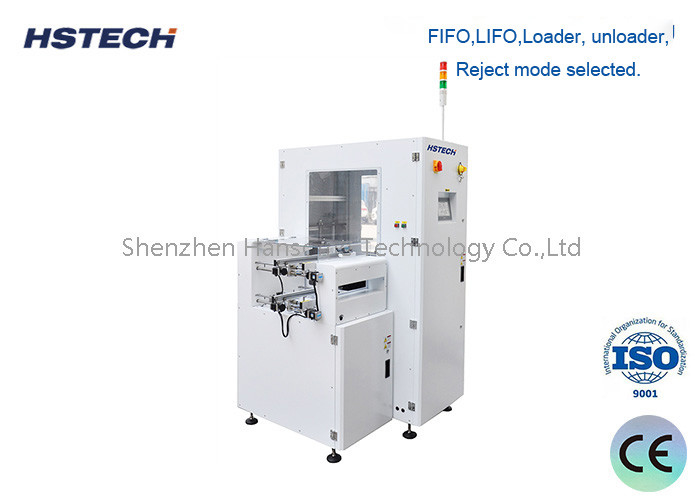

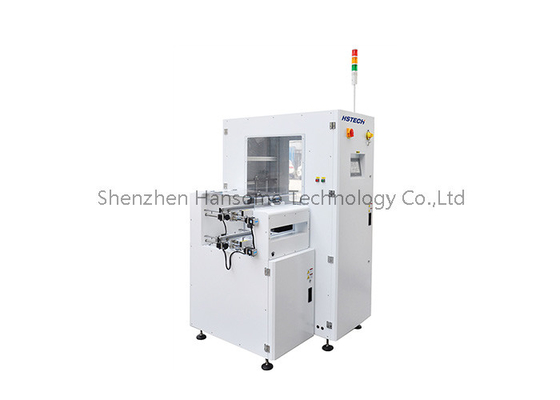

Fast and Smooth PCB Buffering Equipment with Touch Screen Control and Threshold System
Introduction
This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual
signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the
signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.
Features
1.Use friendly soft touch screen control panel.
2. FIFO,LIFO,Loader, unloader, Reject mode selected.
3.Fast, smooth and precise indexing.
4.Inner PCB rack to stock PCBs, Max can stock 25pcs PCBs.
5.Machine Panel will show NG or OK PCB for each layer.
6.Upper conveyor platform for double checking NG PCBs.
7.Threshold's system provided.
8.SMEMA compatible.
Specification
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
TECHNICAL PARAMETERS
| FUNCTION | This unit is used as a buffer between SMD machine and Inspection equipment. |
| Transport Height |
910±20mm |
| Transportation Direction | L~R, or R~L |
| Board Collecting | Lifting PCB rack |
| Conveyor Transporting Speed | Adjustable |
| Rail Fixed Side | Front side or rear side |
| Operation Side | Front side |
| PCB Thickness | Min 0.6mm |
| Pitch Selection | 1-4(10mm pitch) |
| Power Supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| PCB Stock Capacity | Max 25pcs |
| Magazine | No |
| Signal | SMEMA |
| Options | Automatic width adjustment |
About Packaging
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer, We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of sMT/THT production line board handling equipment.We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same time,our experienced engineering team always grasps smart factory's developing directionupdates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
