Signal And Double Side Pcb Cleaning SMT Cleaning Equipment PCB Surface Dust Cleaner With ESD Brush

Signal And Double Side Pcb Cleaning SMT Cleaning Equipment PCB Surface Dust Cleaner With ESD Brush

Introduction

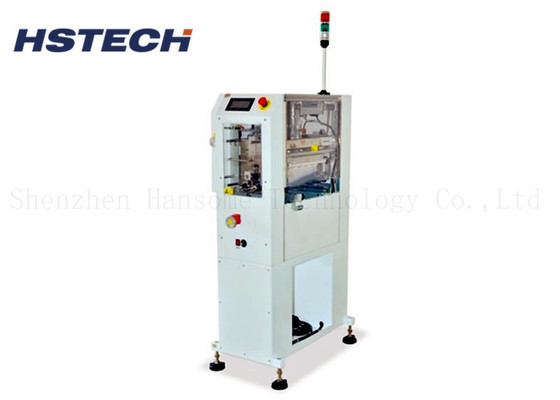

This machine is a automatic PCB cleaning machine in the SMT production line, it used for clean the dust, static, and other dirties on the PCB surface.

The machine used between the PCB loader and screen printer, also used before the conformal coating equipment. It's a new development and also a trend for the SMT production line, because it clean the PCB before the welding, so the defects during and after the welding will be eliminated in advance.

Features

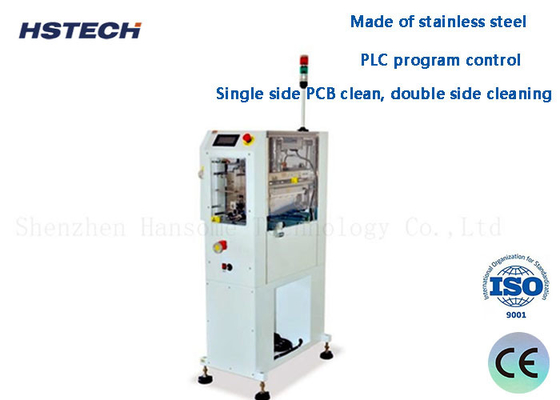

1, The whole machine is made of stainless steel.

2, PLC program control.

3, Two pcs Keyence brand ion wind bar(ionizer), two pcs sticker roller, one pc adhesive roller combined for the whole cleaning process.

4, Ionizer use for clean the electric static on the PCB.

5, Adhesive roller and sticker roller work together clean the dust.

6, In-line cleaning, upstream machine is the PCB loader, down stream machine is the screen printer.

7, Draw-out design for easy changing of adhesive rollers and maintenance.

8, Standard machine is the single side PCB clean, double side cleaning process is optional.

9, Manual adjust the PCB width, automatic adjustment is available based on customer's request.

9, SMEMA signal compatible.

Specification

Why do you need a PCB cleaning machine?

The PCB was not strictly cleaned when leaving the factory, and a large amount of debris and dust remained on the PCB surface, edges, through-holes, etc.;
PCB easily generates static electricity during processing, which can easily cause static damage or absorb dust during the SMT process.
Foreign matter such as dust can cause poor printing and poor welding such as virtual welding, empty welding, component warping, and deflection. Cleaning PCB can prevent and reduce the production of defective products, improve quality, and achieve the purpose of enhancing product reliability.

Working drawing

About Packaging
