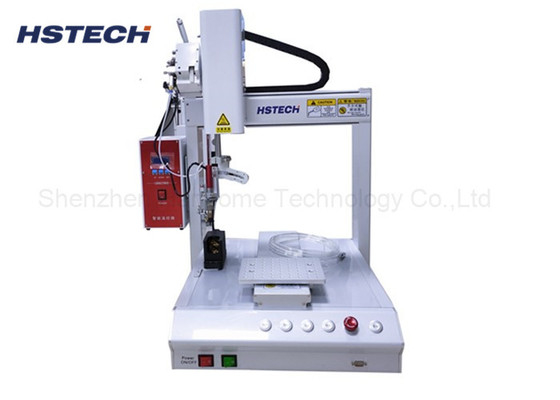

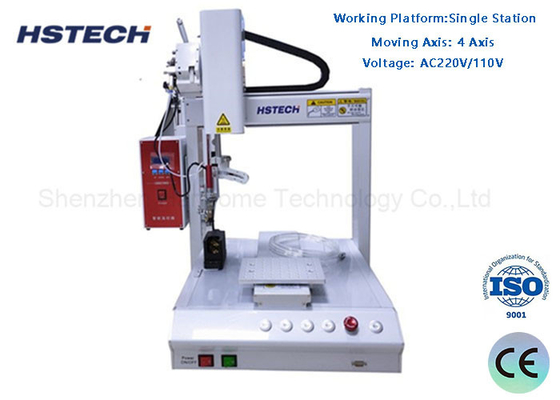

Single Working Station 360 Degree Tabletop Soldering Robot With Smoke Purification Filter System

Single Working Station 360 Degree Tabletop Soldering Robot With Smoke Purification Filter System

Introduce

Automatic Soldering Robot is an automated equipment, a robotic system used to perform welding operations. It combines robotic technology with welding technology to achieve efficient, precise and stable welding processes in industrial production.

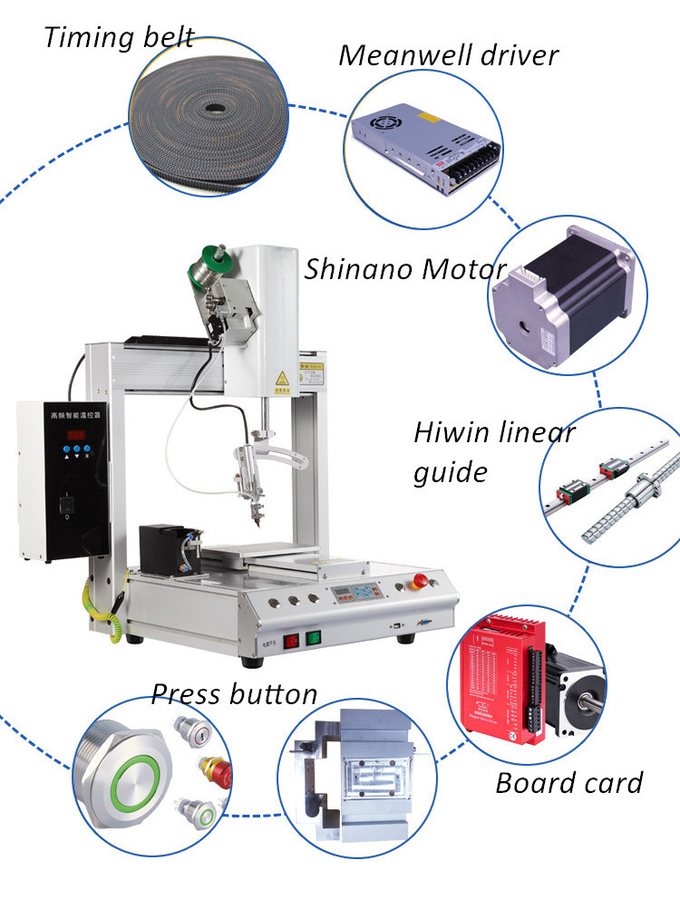

Equipment structure

Robot arm: Features multiple joints and degrees of freedom for flexible movement and welding paths.

Welding Tool: Typically a welding gun or welding jig used to provide the welding arc or welding pressure.

Control system: includes the robot controller and programming software to control and guide the robot's movement and welding operations.

Perception system: It may include a vision system, force sensors, etc., used to sense and adjust information such as the position of the workpiece and the shape of the weld in real time during the welding process.

working principle

Planning and programming: Use specialized software to plan and program welding tasks, determine welding paths, welding speeds, welding parameters, etc.

Robot movement: According to the programming instructions, the robot arm automatically executes the welding path and realizes the welding operation through joint motion and axial movement.

Welding operation: The robot controls the welding tool, applying the welding arc or applying welding pressure to connect the welding material (such as welding wire) to the workpiece.

Real-time adjustment: Through the feedback of the sensing system and the adjustment of the control system, the robot can sense and adjust parameters such as position and strength during the welding process in real time to ensure welding quality and stability.

Completion of the task: When the welding task is completed, the robot will stop the welding operation and wait for the next task or other operations.

Functions and features

High precision and repeatability: Welding robots are capable of high-precision movements and welding operations, maintaining consistent welding quality during repeated tasks.

Efficient production: Compared with manual welding, welding robots can achieve continuous and high-speed welding operations, improving production efficiency and capacity.

Flexible adaptability: Welding robots usually have flexible programming capabilities and can adapt to different welding paths, workpiece shapes and welding requirements, and are suitable for various welding applications.

Safety: The welding robot has a safety control system that can monitor and protect surrounding personnel and equipment, improving the safety of the working environment.

Data recording and analysis: Welding robots usually have data recording and analysis functions, which can collect data during the welding process and perform quality analysis and fault diagnosis.

Features

1, Full automatic operation in one step, including auto soldering, auto clean, auto smoke exhausting,etc.

2, Suitable for all components and inserts components soldering.

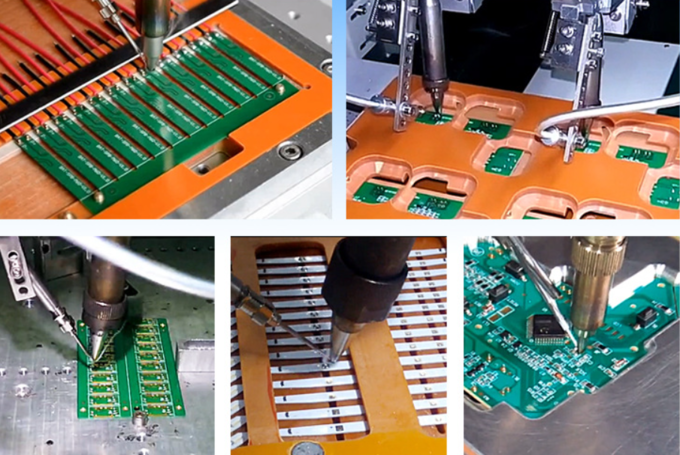

3, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

4, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

5, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.

6, High quality heating and temperature controller, temp accuracy at ±2℃.

7, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

Specification
