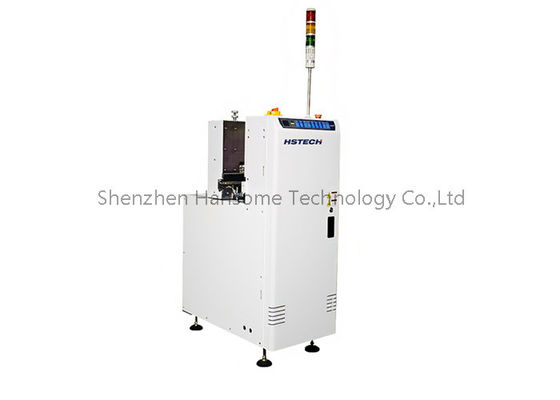

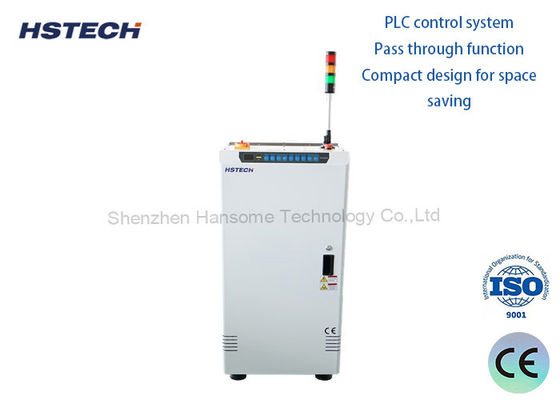

Panasonic PLC Controlled Fast Feeding Bare Board Destacker with SMEMA Interface for SMT Assembly Line

This automated Bare Board Destacker efficiently separates and feeds bare PCBs from stacks to the start of SMT assembly lines, ensuring continuous production flow with Panasonic PLC control and advanced automation features.

A Bare Board Destacker is an essential automated device in electronics manufacturing that systematically removes and separates individual bare circuit boards from stacked inventory. This equipment is specifically designed for loading bare PCBs at the beginning of SMT production lines.

Automated Board Separation: Automatically removes one bare board at a time from stacked inventory and transfers it to subsequent processes including printing, component placement, or inspection stations.

Stacked Board Handling: Capable of processing both parallel and vertical stacks of bare boards stored in feeder areas, with automatic identification and separation capabilities.

Precision Feeding & Conveying: Features an advanced feeding system that extracts bare boards from stacking areas and transfers them via conveyor belts or other mechanisms to next-stage processes.

Automated Operation: Equipped with sophisticated control systems utilizing sensors and motors for fast, accurate, and on-demand bare board processing.

Safety Protection: Includes comprehensive safety features such as protective covers, emergency stop buttons, and sensor systems to ensure operator safety and prevent board damage.

System Integration: Designed for seamless integration with other electronic manufacturing equipment including printing machines and placement machines to form complete automated production lines.

• Panasonic PLC control system for reliable operation
• Touch screen interface with step motor control
• Full sheet metal construction with cooling soldering and computer white surface finish
• Uninterrupted loading capability with By-pass function support
• Fast PCB feeding cycle time of approximately 6 seconds
• Smooth and parallel width adjustment via hand lead screw control
• Three-color tower light status display
• Comprehensive real-time error detection system
• SMEMA communication interface with standard 4-pin wiring
