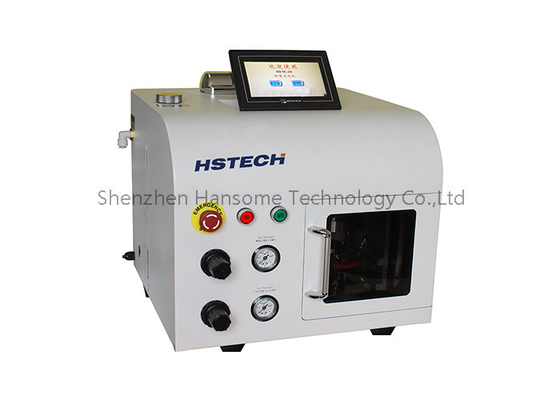

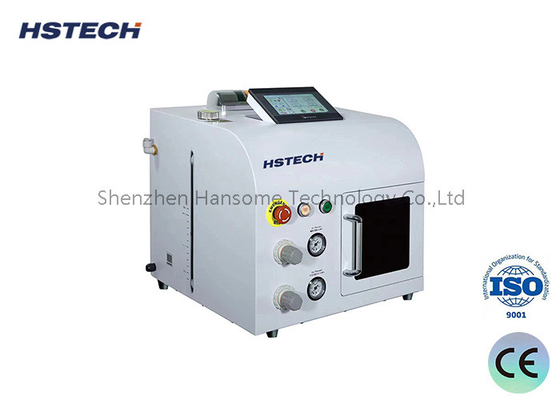

High Speed SMT Cleaning Equipment SMT Nozzle Cleaner with PLC And Touch Screen Control

High Speed SMT Cleaning Equipment SMT Nozzle Cleaner With PLC And Touch Screen Control

Introduce

SMT (Surface Mount Technology) Nozzle Cleaner is a device specifically designed to clean nozzles used in surface mount technology. In electronics manufacturing, SMT nozzles are used to accurately apply solder paste or adhesive to printed circuit boards (PCBs), so keeping the nozzles clean and in good condition is critical to production quality.

SMT Nozzle Cleaner usually has the following features and functions:

1.Cleaning nozzles: SMT Nozzle Cleaner can effectively clean residues on the surface of SMT nozzles, such as solder paste, adhesives, particles, etc., by using specific cleaning media or solvents. It can clean the nozzle by spraying, soaking or brushing to ensure that the nozzle surface is dust-free and pollution-free.

2.Automated operation: SMT Nozzle Cleaner usually has automated operation functions and can perform the cleaning process through preset programs and parameters. It may have functions such as automatic feeding, cleaning, discharge and drying to improve cleaning efficiency and reduce manual intervention.

3.Multiple cleaning methods: SMT Nozzle Cleaner can provide a variety of different cleaning methods to adapt to different types and sizes of nozzles. Common cleaning methods include jet cleaning, ultrasonic cleaning, rotating brushing, etc. These methods can be selected based on the characteristics of the nozzle and usage to ensure thorough cleaning results.

4.Control and monitoring: SMT Nozzle Cleaner usually has a control system and monitoring functions to monitor the parameters and status of the cleaning process. It may have functions such as temperature control, cleaning time control, liquid level monitoring, etc. to ensure the stability and consistency of the cleaning process.

5.Maintenance and Care: SMT Nozzle Cleaner may provide maintenance and upkeep features to ensure long-term reliability and stability of the equipment. It may have automatic cleaning system self-test and cleaning fluid replacement reminder functions to facilitate timely maintenance and upkeep.

Cleaning Principle

High-pressure jet technology: A, fine water mist particles, continuous pressure to reduce water, resulting in 3-10um particles of water mist to clean the dirt into the inner wall of the small nozzle aperture.

Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed power injection onto the nozzle, which can reach 30 pulse frequency per second, forming a continuous impact force above the nozzle to be cleaned. Smash the surface and internal dirt for cleaning purposes.

Specification

Product Features

1, Elegant appearance, high precision 304 stainless steel machine body.

Machine size

Nozzle Tray
