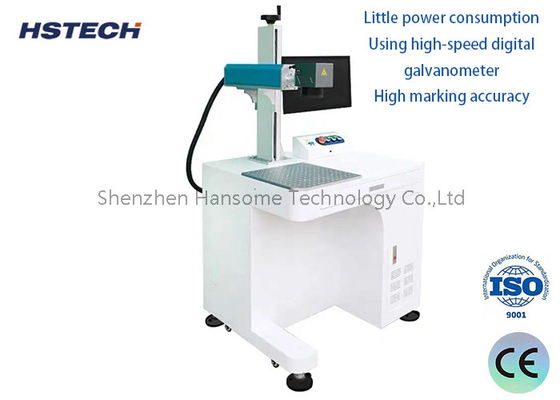

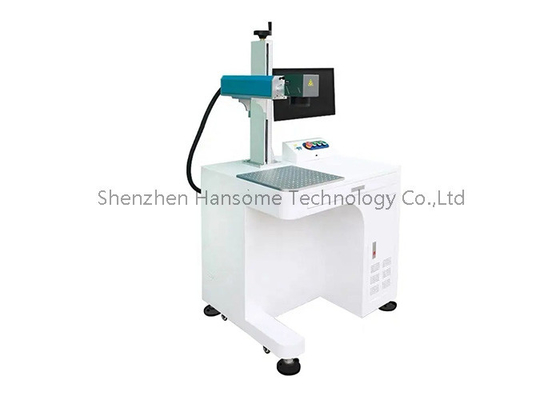

3W UV Laser Unit UV Laser Marking Machine PCB Handling Equipment With SMEMA Signal

3W UV Laser Unit UV Laser Marking Machine PCB Handling Equipment With SMEMA Signal

Introduce

UV Laser Marking Machine is a device that uses ultraviolet laser technology for high-precision marking.

Features:
Ultraviolet laser is used as the marking light source, and the wavelength is usually 355nm.
Capable of high-quality marking on metals, plastics, ceramics and other materials.
The marking process is contactless and does not cause any mechanical damage to the material.
The marking resolution is high, reaching more than 1000 points per millimeter.
It can realize fine text, graphics, QR codes and other markings.
Has good weather resistance and corrosion resistance.

main component:
UV laser: produces high-energy ultraviolet laser.
Optical scanning system: Use mirrors to quickly and accurately scan the laser.
Workbench: Fixed workpiece to be marked, automatic or manual feeding can be selected.
Control system: Control laser, scanning system and other parameters through software.
Protective cover: Isolates laser radiation to ensure safe operation.

Application areas:
Electronics industry: permanent marking on PCBs, integrated circuits, components, etc.
Machinery Manufacturing: Coding and marking metal parts, molds, tools, etc.
Medical devices: Mark model number, batch number and other information on the surface of the implant or device.
Automobile manufacturing: Anti-counterfeiting marking and traceability coding on auto parts.
Other fields: including identification of home appliances, jewelry, wine and other products.

Advantage:
The marking quality is high, the resolution is good and the reliability is strong.
No consumables required, low maintenance cost, suitable for mass production.
Programmable control to achieve automated and efficient marking process.
No environmental pollution and meets the requirements of green manufacturing.

​Specification

Features

1, 3,5W UV laser output power.

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Application

The laser marking machine adopts the most advanced laser technology, which has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. The fiber laser marking machine is environmental friendly, low consumption, fully automatically and leading laser system. The software has already been installed and the parameter is settled before delivery. Once received, the laser etcher could work directly without data adjustment. It is widely used in metal materials and some non-metallic materials. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

According to customer's actual case of production line, we could customize and provide special solutions for non-standard automation marking and identification.
