LED Button Control Link Conveyor PCB Handling Equipment SMT Conveyor With ESD Flat Belt

LED Button Control Link Conveyor PCB Handling Equipment SMT Conveyor With ESD Flat Belt

Introduce

The SMT (Surface Mount Technology) connection station is a piece of equipment used in the SMT production line in electronic manufacturing. It is used to support and handle the connection of PCB (Printed Circuit Board) during the SMT process. and transfer.

Modular design:
Composed of multiple standardized chain transmission modules
Each module is generally 500-1000mm long
Can be flexibly assembled into transmission lines of different lengths according to actual needs

Continuous transmission:
The chain is driven by a driving motor to move continuously
Achieve smooth and high-speed transmission of PCB boards
The transmission speed is generally 0.5-2 meters/minute

High load-bearing capacity:
The load-bearing weight is usually between 10-50kg
Suitable for transmitting PCB boards of various sizes and weights

Precise positioning:
Equipped with position sensors and control systems
Can accurately transmit PCBs to specified locations

Flexible layout:
Modules can be arranged horizontally or vertically as needed
Convenient for flexible layout in different production environments

Easy to maintain and energy-saving:
Simple mechanical structure, easy for daily maintenance
Use low-power motors, low overall energy consumption

Features

1, Stable stainless steel structure.

2, Hand crand width adjust.

3, Black transpoting belt, 1.0mm thickness.

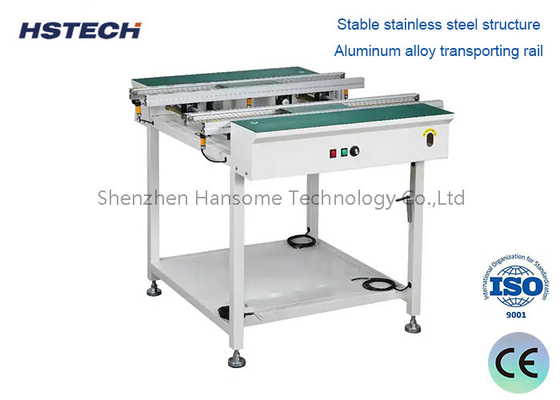

4, Aluminum alloy transporting rail.

5, LED button control, speed adjustment motor.

6, Optional function available, tower light, inspection, dust cover, etc.

7, Customized requirement available.

8, Length available, 600mm, 1000mm, 1500mm, or optional.

9, SMEMA signal for inline connection.

Specification
