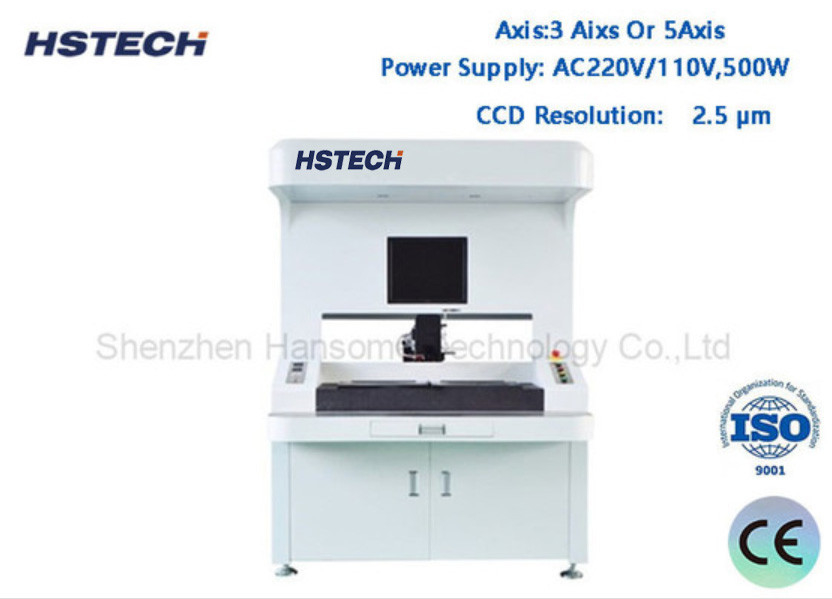

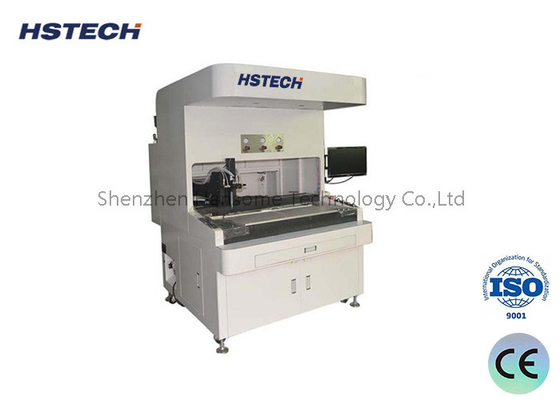

Windows XP Operation System Visual Glue Dispensing Machine for Toy Assembly

Brand Name:	HSTECH
Model Number:	HS-VS400
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,TUV

Product Name:

3Axis Visual Glue Dispensing Machine

Axis:

3 Aixs Or 5Axis

Power Supply:

AC220V/110V,500W

CCD Resolution:

2.5 μm

Machine Weight:

600kg

Machine Dimension:

1060x1200x1700mm

Condition:

New

After-sales Service Provided:

Online Support,Video Technical Support

Packaging Details:

Wooden case,

Supply Ability:

100 sets per month

Product Description

Windows XP Operation System Visual Glue Dispensing Machine for Toy Assembly

Product introduction

This glue dispensing machine is equipped with a double table for efficient production and visualization of the dispensing process to optimize details.

Features

1. The machine is equipped with an intelligent rapid visual recognition system.
2. The operator can freely place the product, and the camera automatically recognizes the direction.
3. Windows XP system, easy to learn and operate.
4. The rear software precisely controls the glue application, with fast speed and high accuracy.
5. Widely used in various fields such as electronic products, LEDs, toys, semiconductors, speakers, security products, etc.

Machine Specification

Product name	Visual Glue Dispensing Machine
Model	HS-VS400
Transmission height	920±20mm
Table size	300*400mm
Table qty	single or dual table up to customer
Fixture	customized
CCD resolution	2.5 μm
Max speed	1000mm/min
Glue viscosity range	≤5000LPS
Repeat accuracy	±0.02mm
Recognition accuracy	±0.0125mil
Power supply	AC220/110V,500W
Air pressure	0.5~0.7Mpa
Glue tank	10L,manual stirring
Light source	LED light source
Linear guide adjustment	Intelligent adjust
Programming mode	Manual teaching
Software	Windows+dispensing software
Spraying method	Automatic
Total power	2.6kW
Machine body	Stainless steel
Machine weight	600kg
Machine dimension	1060x1200x1700mm
