High Precision Stepper Motor Control Floor Standing Automatic Soldering Robot

Brand Name:	HSTECH
Model Number:	HS-FS5331R
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Floor-standing Automatic Soldering Robot

Machine Body:

Metal Structure

Iron Tin:

Single

Platform:

Double Y Working Platform

Linear Guide:

Hiwin

Usage:

Pcb Soldeing,Welding,Circuit Board Soldering

Packaging Details:

Wooden package

Supply Ability:

200 pcs per month

Product Description

High Precision Stepper Motor Control Floor Standing Automatic Soldering Robot

Introduction

This automatic soldering machine is floor-standing, providing 5-axis work and dual soldering platforms, with a single soldering iron soldering range of up to 500x300x300x100mm.It is suitable for diverse PCBA soldering, replacing manual labor and improving efficiency and quality.

Features

1,Metal structure body, dual platform operation, durable and flexible.
2,5-axis work, including R rotary axis, realize multi-angle welding.
3,Movement distance 500300300mm, support customization.
4,Single soldering iron moving range is optional, support double/triple double soldering iron customization.
5,Support spot welding, drag welding and other welding methods.
6,Easy programming, support manual setting and CAD drawing import.
7,Using Hiwin linear guide to ensure high precision movement.
8, Stepping motor and synchronous belt control, stable and reliable.

Specification

Model	HS-S5331R	HS-S6331R
Voltage	AC110V/220V,50/60Hz
X/Y1/Y2/Z working range	500300300*100mm	600300300*100mm
R axis	360degree
X/Y/Z moving speed	max 300mm/s
Driven system	Stepper motor,timing belt
Linear guide	Taiwan brand high precison guide
Repeat accuracy	±0.02mm
Programing	Teach pendant
Control system	Control board
Program storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File storage space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Document support	CAD
Iron Tin cleaning	Air cleaning/pneumatic
External interface	USB+RS232
Soldering method	Point/drag soldering
Weight	65kg	70kg
Machine dimension	715585800mm	815685800mm

Main machine configuration

1, Double soldering Iron, double Y working platform

2, Handheld teach pendant programmer

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components

8, Cleaning box

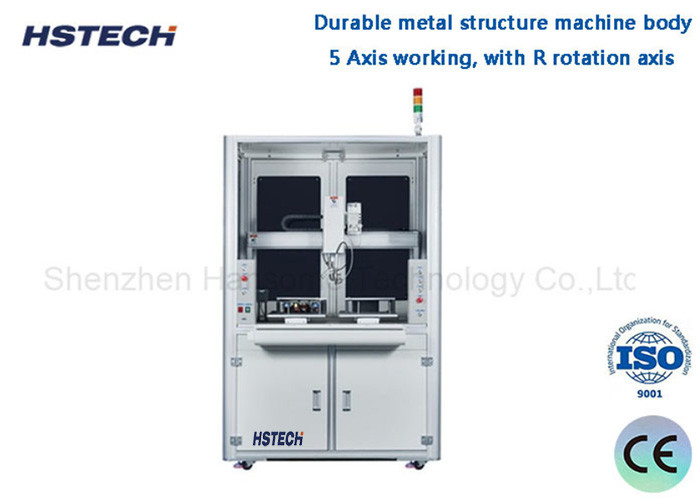

High Precision Stepper Motor Control Floor Standing Automatic Soldering Robot 0

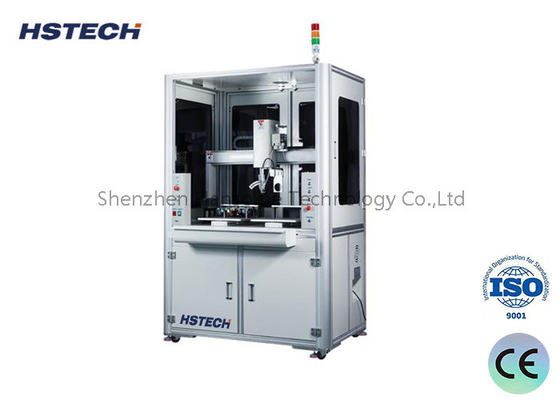

High Precision Stepper Motor Control Floor Standing Automatic Soldering Robot 2
