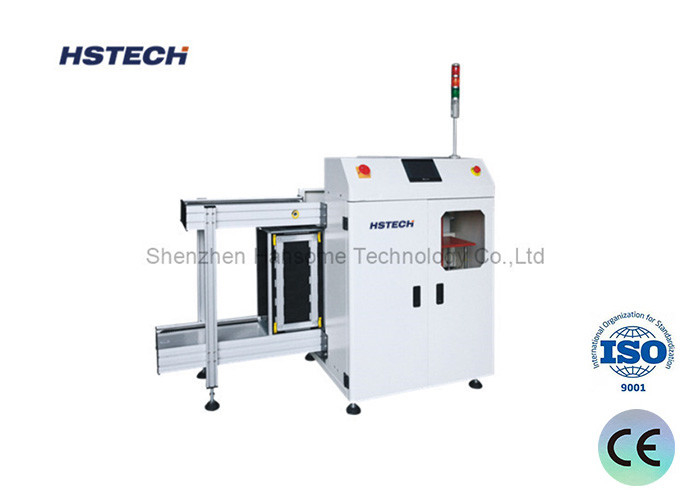

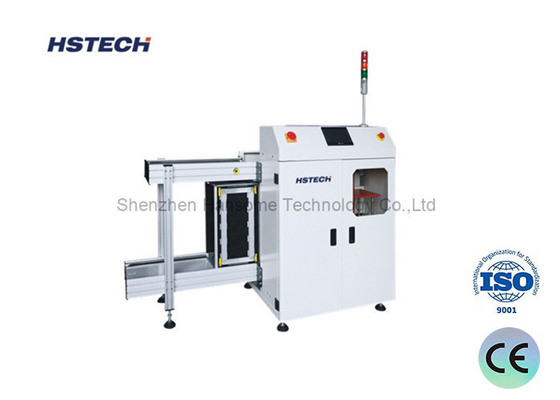

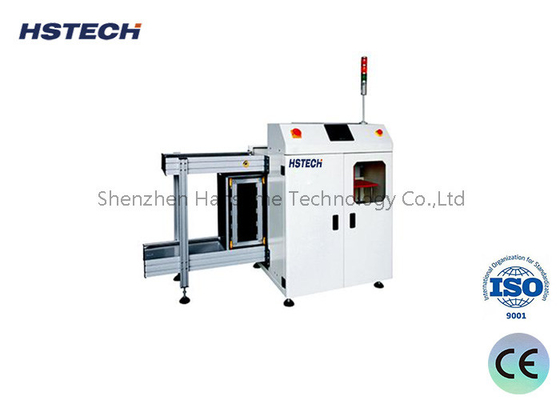

Professional PCB Handling Equipment with Touch Screen Control Panel

Brand Name:	HSTECH
Model Number:	HS-390VLL
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Vacuum Loader / Loader Combined Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Stainless Steel

Condition:

New

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Flexible PCB Handling Equipment with 3 Magazine Loading Capability

Application

This machine is a powerful combination loading machine that combines the dual functions of a vacuum loader and a regular bin loader. It is specifically designed for use at the start of an SMT production line and can efficiently and accurately transport bare PCBs or multiple panels from the bin to downstream machines, ensuring a seamless production process.

Specification

Type	HS-250VLL	HS-330VLL	HS-390VLL	HS-460VLL
Power supply	AC100~230V 50/60Hz	AC100~230V 50/60Hz	AC100~230V 50/60Hz	AC100~230V 50/60Hz
Air Supply	5kgf/c M2	5kgf/c M2	5kgf/c M2	5kgf/c M2
PCB Size	5050~350250	5050~455330	5050~530390	5050~535460
PCB Direction	left to right or right to left
Magazine Size	335320565	460400565	535460565	535530565
Step pitches	10,20,30,40mm
Storage capacity	200pcs
Transport height	900±20	900±20	900±20	900±20
Motor power	300W
Machine size	16008501200	20009501200	225010501200	23010501300
Weight	140kg	180kg	220kg	280kg
Optional control panel	touch screen
