SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles

Name: SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-800
Price: 10,500.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-800
MOQ:	1 set
Price:	Negotiable
Payment Terms:	D/P, T/T, Western Union
Supply Ability:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Nozzle Cleaner

Voltage:

1P2W, AC100V/220V, 50/60Hz

Machine Body:

304 Stainless Steel

Cleaning Method:

High Pressure Spraying Cleaning

Control Panel:

Touch Screen(English)

Machine Size:

500*440*530mm

Packaging Details:

Wooden package

Supply Ability:

200 sets per month

Product Description

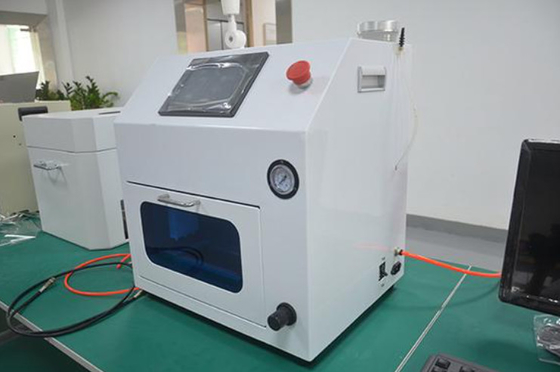

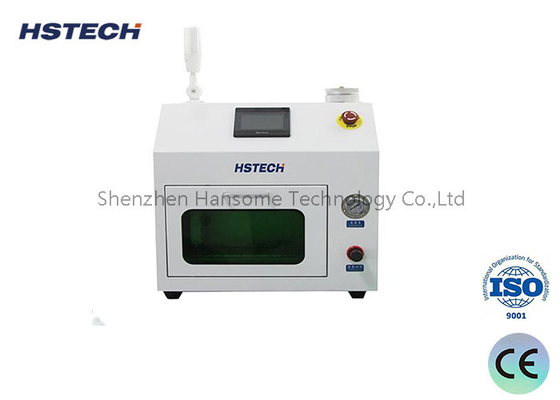

SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles

Introduction

HS-800 nozzle cleaning machine automatically complete the cleaning and drying, the use of multi-nozzle spray, the use of fluid dynamics will be crushed into a strong water mist, to the sonic kinetic energy spray nozzle, the formation of a continuous shape to clean the surface and the internal dirt, suitable for cleaning small parts and high-precision nozzles.

Product Features

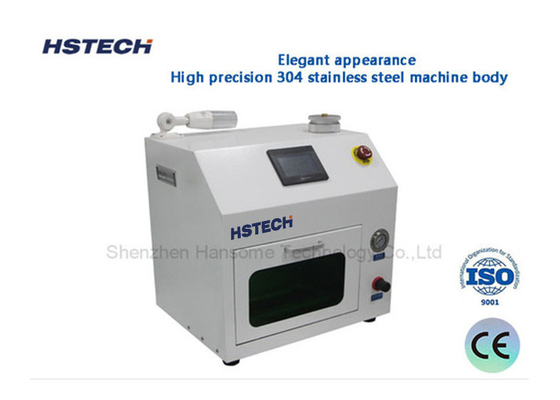

1, HS-800 beautiful appearance, using 304 stainless steel body.

2,Efficient cleaning, up to 30 nozzles at a time.

3,Applicable to a variety of nozzle shapes, including cross, I-beam and special shapes.

4,Supersonic atomized spray, cleaning thoroughly, even small holes are clear.

5,Easy to operate, support English interface.

6,Set observation window, real-time monitoring of the cleaning process.

7,Use D.I water, safe and harmless to the nozzle and reflective plate.

8, touch screen + PLC control, stable and reliable performance.

Specification

Model	HS-800
Voltage	Single phase, AC110-220V, 50H60Hz
Air pressure	0.5~0.6Mpa
Air source	Pure compressor air
Control mode	PLC+Touch Screen
Jet pressure	≤0.4MPa
Air wastage	Under 280NL/min
Water source	D.I water
Water storage	800cc
Water consumption	300cc/hrs
Admission pipe/Drainpipe	φ8/φ6
Nozzle tray	Default 30 nozzles
Nozzle size	01005, 0201-2512inch
Noise	35-60dB

Machine size

SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles 0

Nozzle Tray

SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles 2

SMT Cleaning Equipment HS-800 Nozzle Cleaner with Tray for High Precision Nozzles 3
