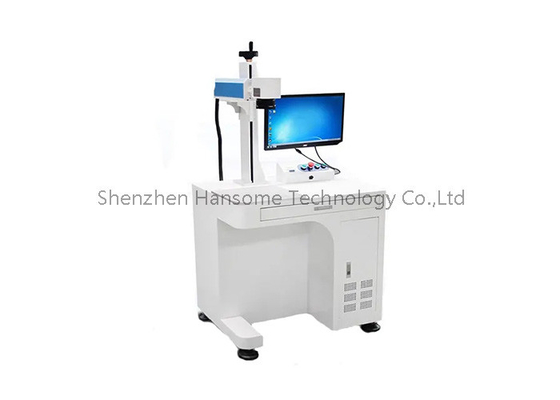

High-Speed and Accurate Marking with 3W UV Laser PCB Handling Equipment

Brand Name:	HSTECH
Model Number:	HS-UV3W
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

UV Laser Marking Machine

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.3 - 5mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Total Power:

2600W

Power Supply:

AC220V

Air Pressure:

4-6bar

Mounting Accuracy:

±0.01mm

Type:

Automatic

Weight:

30KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

Air Cooled 3W UV Laser Marking System with Min Character 0.15mm

Specification

Model	HS-UV3W
Output power	3W
Laser type	3W UV laser unit
Marking area	150*150mm(Optional)
Laser point diameter	<0.01mm
Laser output power	0~100% adjustable
Working frequency range	5~100KHz
Power stability	<±1%rms
Laser wave length	355nm
Marking type	Static marking/Dynamic marking
Marking speed	≤7000m/s
Min character	0.15mm
Repeat accuracy	±0.003mm
Laser unit	Chinese brand/Overseas brand(optional)
Cooling type	Air cooling
Power supply	AC220V,60Hz,15A
Software	Professional SW
Laser lifespan	20000Hrs
Machine size	900mm680mm1500
Machine weight	120kg

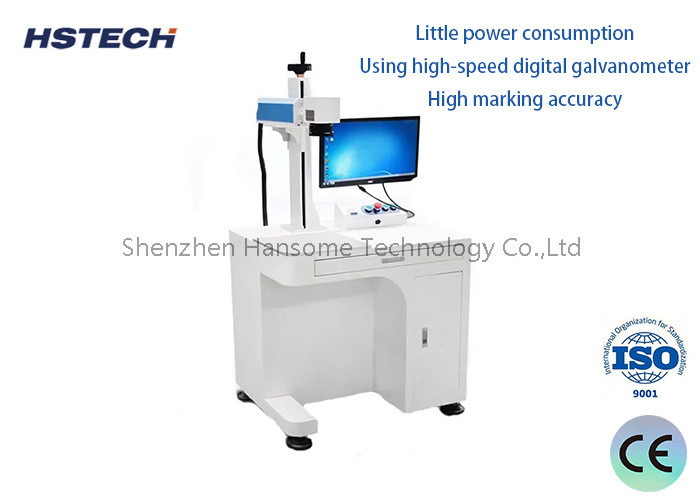

Features

1.3,5W UV laser output power.

2. Low power consumption, energy consumption of 500 watts.

3. Use a high-speed digital ammeter that is 2-4 times faster than regular models.

4. High marking accuracy, ± 0.003MM, with adjustable coordinates for marking content.

5. The device has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The device labeling software can support vector graphics in formats such as AI, PLT, CAD (DXF), CDR, etc. It can be imported indirectly or directly.

7. Simple, ensuring that the post marking software can still be upgraded for free.

8. Mainly used in multiple industries such as hardware, communication, electronics, automotive parts, plastics, handicrafts, etc.

Equipment function

Excellent performance, easy to operateUV laser marking machine using 355nm UV laser, UV laser

due to the focusing spot is verysmall, and the processing heat affected zone is small so you can carry out ultra-fine marking, special material marking marking effect has higher requirements of customers preferred products.Compared with infrared laserthe focusing spot of ultraviolet light at 355nm is verysmallwhich can greatly reduce the mechanical deformation of the material and the processing heat affected zone is smallTherefore it is mainly used for ultra-fine marking, engraving, especially for the high-end market of ultra-fine processing.such as electronic products. cosmetics medicines food and other high polymer materials

Application

Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.
