Front-Side Operation Multi-Function SMT Production Line Automatic Surface Dust Cleaner

Brand Name:	HSTECH
Model Number:	HS-DC250
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

PCB Surface Dust Cleaner

Warranty:

1 Year

Control:

Touch Screen

PLC:

MITSUBISHI

Relay Brand:

Schneider

Optoelectronic Switch:

OMRON

Material:

Aluminum Alloy

Condition:

New

Thickness:

0.6-4.0mm

Signal:

SMEMA

Application:

Electronic Assembly

Color:

Silver

Control System:

PLC

OEM/ODM:

Available

Power Consumption:

200W

Power Supply:

AC220V

Air Pressure:

4-6bar

Speed:

200-300pcs/min

Type:

Automatic

Weight:

220/240KG

Packaging Details:

Wooden package

Supply Ability:

100 sets per month

Product Description

PLC-Controlled SMT Cleaning Machine for Fast and Efficient Cleaning

Technical Details

Function	This machine used for remove dust, glass fiber, static electricity,etc on top surface of PCB before screen printing.
Transport height	900±30mm
Transportation direction	L~R, or R~L
Cycle time	Approx 8 seconds
Sticker roller qty	1reel
Adhesive paper	2 reels
Ionizer qty	2pcs
Brush	1pc
Track fixed side	Front side
Power supply	AC100-230V,50/60Hz
Air pressure	4-6bar
Air consumption	Max 10L/min
PCB thickness	0.4~5mm
Communication	SMEMA

Specification

Model	HS-DC250	HS-DC330
Efficient PCB length	5050~330250mm	5050~455330mm
Machine dimension	6508001300mm	8009501300mm
Weight	100kg	130kg

Features

1.Develop and design special equipment for SMT production line.
2.Realize PLC control system.
3.High-speed anti-static spiral brush with vacuum cleaning method.
4.SMT printing, mounting before and after the back of the PCB board foreign body AI cleaning.
5.Keyence static eliminator to eliminate static interference.
6.Touch cleaning, cleanliness > 99%.
7.Efficient cleaning roller design.
8.Mechanical parts easy to maintain extractable design.
9. Chinese and English operation interface, easy to operate.
10. Compatible with SMEMA signal.

Machine drawing

Front-Side Operation Multi-Function SMT Production Line Automatic Surface Dust Cleaner 0

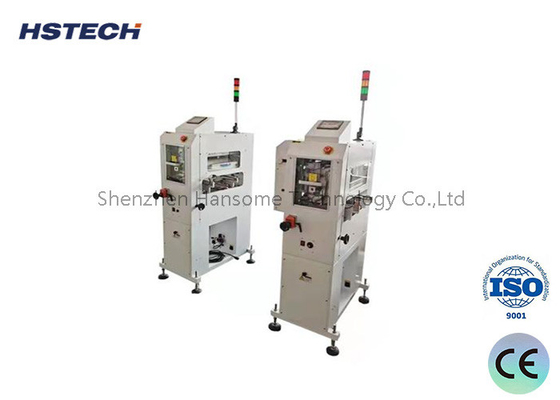

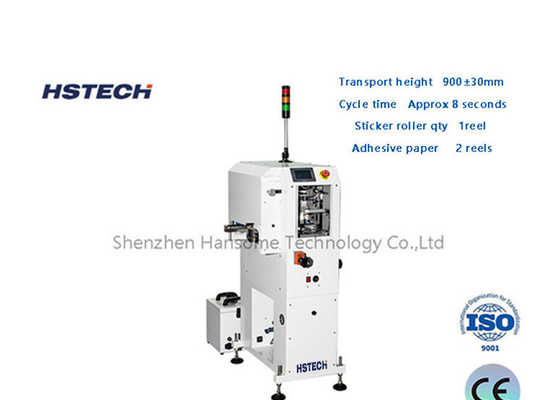

Product physical picture

Application

The machine is specially designed to remove dust, fiber and static electricity from PCB surface before screen printing.

About Products

Front-Side Operation Multi-Function SMT Production Line Automatic Surface Dust Cleaner 4

About Packaging

In terms of after-sales service, we adhere to the principle of "responsibility first". Once we receive any feedback about the quality of our products, we will respond quickly and continue to provide our customers with considerate service and support.
