Air Pressure SMT Cleaning Equipment Ultrasonic Cleaning Machine

Brand Name:	HSTECH
Model Number:	HS-680
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Name:

Auto Squeegee Cleaning Machine

Usage:

Cleaning Squeegees After Screen Printing

Cleaning Tank Capacity:

50 Liter (max)

Best Liquid Capacity:

40L

Cleaning Time:

1-15 Min(adjustable)

Drying Time:

1-15 Min(adjustable)

Packaging Details:

Wooden case, with foam

Supply Ability:

50 sets per month

Product Description

Innovative SMT Cleaning Equipment Closed-Loop Cleaning for Improved Environment

Description

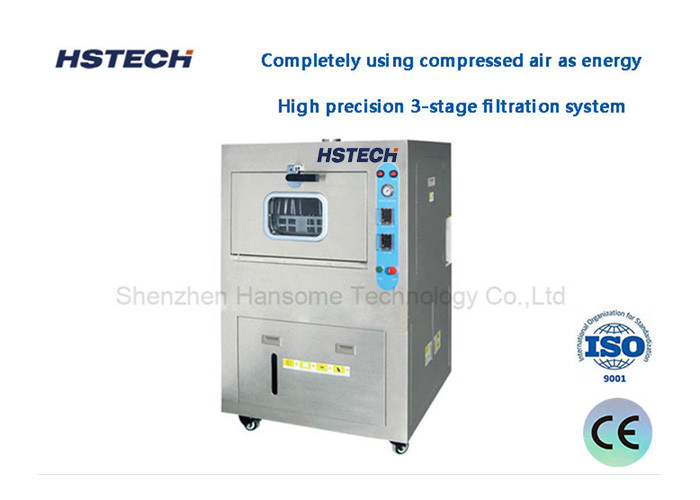

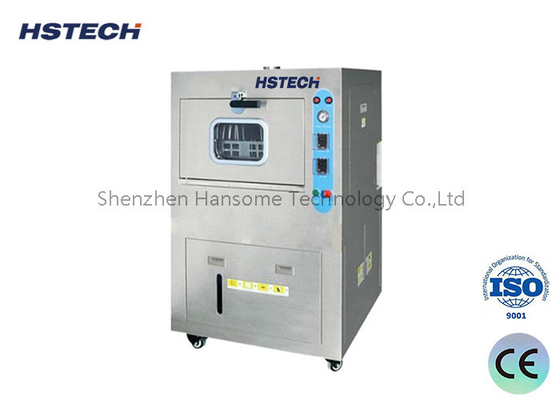

The machine is a fully pneumatic cleaning unit, powered by compressed air, which is efficient and safe. Put in the squeegee/PCB board manually, set the cleaning and drying time and then start, the machine will finish the operation automatically and stop at the set time. Automatic reset at door opening time facilitates continuous operation and enhances productivity. Cleaning liquid can be recycled to reduce consumption and cost, no need to touch the liquid manually to protect personnel safety. Adopt imported control components to ensure stable operation and long life of the machine.

Features

1,Full pneumatic design, no electricity, no fire risk.

2,Closed-ring cleaning, improve the working environment.

3,High precision three-stage filtration, extend the life of cleaning agent.

4,Dedicated to scraper, PCB/PCBA cleaning.

5,Large cleaning volume, improve efficiency and save consumables.

6,Precision filtration system.

7, to ensure cleanliness, cleaning and air drying in one.

8,Operating panel hydraulic meter shows liquid pressure.

9,Independent exhaust design, reduce liquid consumption.

10, 304 stainless steel body, acid and alkali resistance, durable.

11,One-key operation, simple and easy to clean and dry.

Specification

Model	HS-680
Product name	Squeegee cleaning machine
Squeegee cleaning qty	10-20 pcs each time
Machine metarial	Stainless steel, anti-fire, explosion-proof
Power	Pneumatic
Application	For cleaning squeegees after screen printing
Cleaning basket size	560600600mm
Cleaning solvent capacity	50L(max)
Best cleaning fluid using volume	40L
Cleaning method	Rotary double side pressure injection and high pressure air
Cleaning time	1~15 Min(adjustable)
Drying time	1~15 Min(adjustable)
External air supply	0.45Mpa~30Mpa
Max squeegee cleaning size	600mm
Air letout size	φ120*240m
Filter system	3 level filter(10um,5um,1um)
Weight	260kg
Machine dimension	1000MM(L)1000MM(W)1760MM(H)
