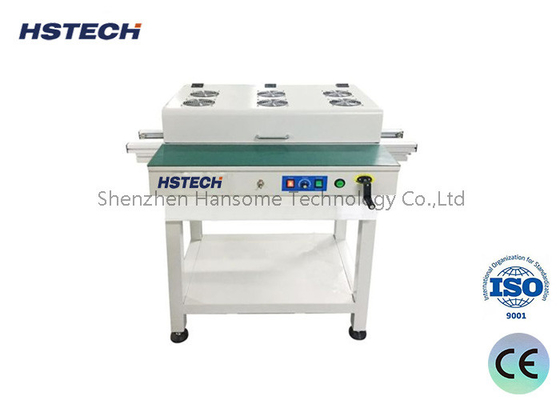

Aluminium Transport Rail Conveyor for 5050-500390 mm Circuit Boards

Brand Name:	HSTECH
Model Number:	HS-C600
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Transporting Length:

600 Mm

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Product Description

Optional Functions Available PCB Handling Equipment for 50*50-500*390mm Boards

Features

1.Body Material: Stable thickness of stainless steel to ensure robustness and durability.
2.PCB board adaptability: supports PCB boards with a maximum width of 390mm, and is equipped with the function of manually adjusting the board width to adapt to different size requirements.
3. Conveyor speed control: Equipped with knob, the running speed of the conveyor can be easily adjusted to meet different production rhythms.
4. Worktable design: anti-static green worktable is adopted to effectively protect electronic components from static electricity damage.
5. Conveyor rail: made of aluminium alloy, ensuring smooth and wear-resistant conveyance and prolonging service life.
6. Operation and control: LED button intuitive control, with speed adjustment motor, to achieve precise operation.

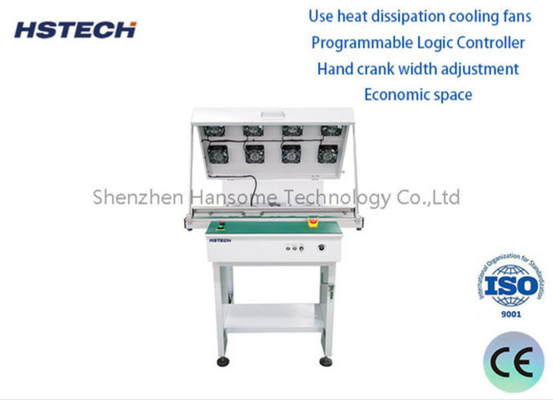

7. Additional functions: Provide optional functions such as tower light, inspection, dust cover, etc., which can be customised according to requirements to meet the needs of different working environments.
8. Individual customisation: Customised design and manufacturing services can be provided according to specific customer requirements.
9. Length options: the length of the equipment provides a variety of options such as 600 mm, 1000 mm, 1500 mm, or customised according to requirements.
10. Online connection: Support SMEMA signal, convenient for online connection with other equipment or production lines for efficient integration.

Translated with DeepL.com (free version)

Specification

Model		HS-C600/HS-C600S
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
Communication signal		SMEMA
