Convenient Hand-Operated Width-Adjustable Circuit Bboard Conveyor for 5050-500390mm Circuit Boards

Brand Name:	HSTECH
Model Number:	HS-C600
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Transporting Length:

600 Mm

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Product Description

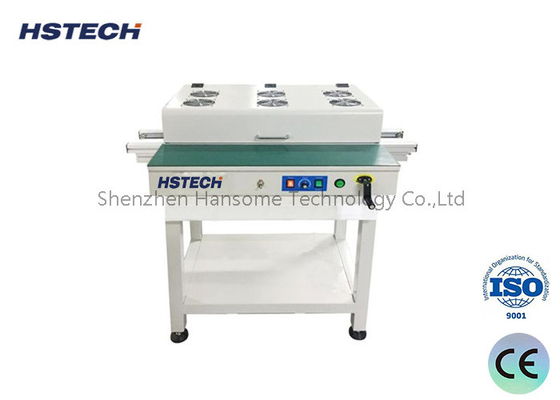

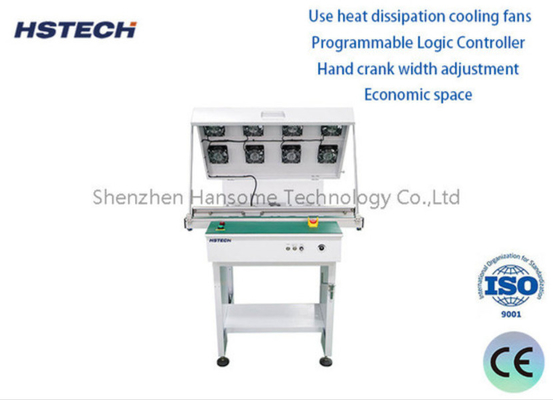

Convenient Hand Crank Width Adjustment PCB Handling Equipment for 50*50-500*390mm PCBs

Features

1. Sturdy and durable: adopts stainless steel body with stable thickness to ensure long-lasting durability of the equipment.
2. Strong adaptability: support the maximum width of 390mm PCB board, and equipped with manual adjustment mechanism, easy to adapt to different board width.
3. Flexible speed regulation: easily adjust the transfer speed through the knob to meet different production needs.
4. Anti-static design: The green worktable is made of anti-static material to ensure the safe transmission of electronic components.
5. Smooth transmission: Aluminium alloy transmission track ensures smooth and jitter-free transmission of PCB boards.
6. Intelligent control: LED button control system combined with speed regulating motor to achieve accurate speed control.
7. Rich additional functions: Provide optional functions such as tower light, inspection, dust cover, etc. to meet the diversified needs of customers.
8. Individual customisation: We accept individual customisation from customers to ensure that the equipment fully meets your production needs.
9. Flexible length options: equipment lengths are optional, including 600 mm, 1000 mm, 1500 mm, or customised according to requirements.
10. Convenient online connection: Support SMEMA signal, which is convenient for the equipment to connect with other production lines online and improve production efficiency.

Specification

Model		HS-C600/HS-C600S
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
Communication signal		SMEMA
