Introduction:

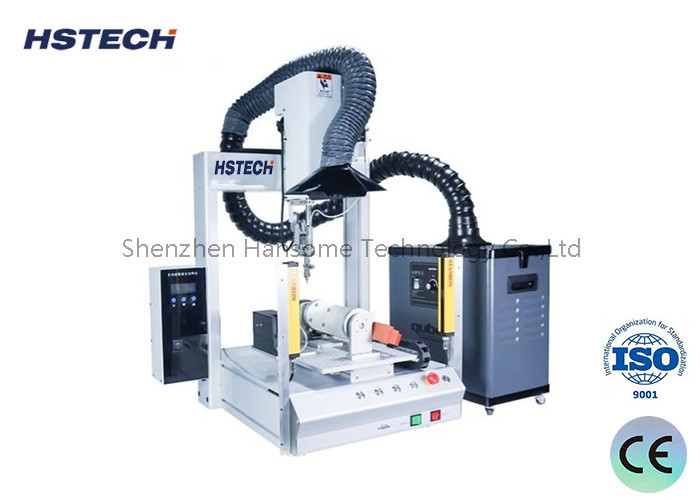

This automatic soldering machine is a special customized soldering machine, it equipped with a smog cleaner to clean the solder smog, for keep better air environment in the production factories.

This machine is a normal requirment in some Europe countries, and it become a trand all over the world. The cleaner has a smog suck in pipe which is installed on the top of the solder tip, and moving together with the solder tip, through this method the cleaner can suck in most of the smog,keep the air clean and more health.

Basic structure:

The 4-axis robotic arm structure can realize multi-dimensional welding actions.
Equipped with a high-precision welding head, the welding parameters can be accurately controlled.
Integrated fume purification device for dust collection and filtering welding fumes.
The overall design is compact, with a small footprint, suitable for desktop use.

Main features:
High degree of automation: The welding process is completed automatically without manual intervention.
Stable welding quality: Accurately control welding parameters to ensure the reliability of welding points.
Reducing human burden: No manual operation is required, which greatly reduces the labor intensity of workers.
Improve production efficiency: A single device can quickly complete large-scale welding tasks.
Fume purification: Built-in fume purification system to reduce workers' exposure to harmful gases.

Main functions:
Automatically identify and locate the welding point position and accurately perform welding actions.
Programmable control of welding voltage, current, time and other parameters to ensure welding quality.
Built-in high-performance fume extraction device to absorb and filter welding fumes in real time.
With automatic feeding, clamping, retreat and other functions, it can realize fully automatic welding.
Supports multiple welding modes, such as single-spot welding, continuous welding, etc., to meet different needs.

Application scenarios:
Widely used in SMT and DIP welding in electronic product manufacturing.
Suitable for welding small electronic components such as mobile phones, computers, and home appliances.
It can also be used for welding other electronic products such as PCB boards and FPC flexible circuit boards.

Smg Cleaner Specification:

Machine Features:

1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.

2, The soldering iron without nitrogen, very safety and environment protective.

3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.

4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.

5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.

Specification:

Application:

Electronic manufacturing industry:
Used for automatic welding of various electronic products such as PCB boards and electronic components.
It can achieve high-precision and high-repeatability welding to improve product quality.
Save a lot of labor costs and improve production efficiency.

Mold manufacturing industry:
Applied to the welding processing of mold parts and small metal parts.
It can complete complex welding paths and improve welding quality.
Reduce dependence on skilled workers and shorten production cycle.

Medical device manufacturing:
Used for welding processing of small parts such as medical devices and precision instruments.
Ensure welding quality and meet the strict requirements of the medical industry.
Improve the level of production automation and shorten delivery cycle.

Aerospace manufacturing:
Suitable for high-precision welding of small parts in the aerospace field.
It can meet the strict requirements of the aerospace industry for reliability and consistency.
Improve production efficiency and reduce labor costs.

Research laboratory:
Used for welding research of laboratory instruments and equipment and small parts.
It can perform complex welding experiments and improve research efficiency.
Avoid operational errors caused by manual welding.
