Flexible Double Platform Automatic Soldering Robot for Improved Welding Efficiency

Flexible Double Platform Automatic Soldering Robot for Improved Welding Efficiency​

Introduction:

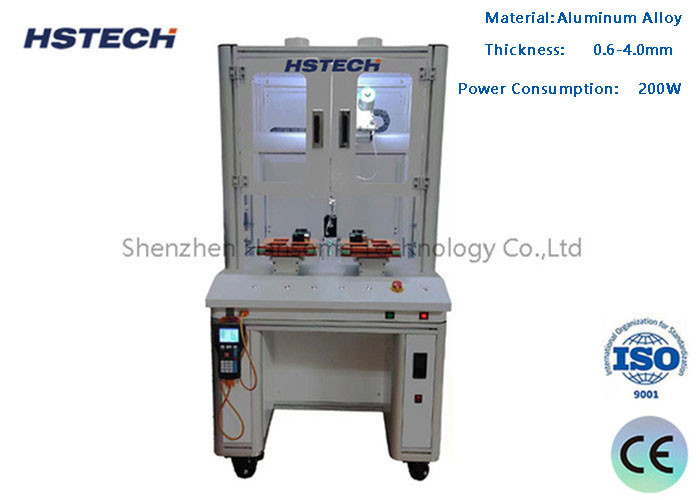

This model automatic soldering machine is the floor standing model soldering robot, different from the desktop soldering machine, it's a more convenient and flexible soldering robot. This machine adopts the 5 axis working system, with double soldering platform, single soldering iron/tip

morving range 500x300x300x100mm. The machine suitable for many kinds of PCBA welding, automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.

Features:

1, Durable metal structure machine body, floor standing model, double platform operation.

2, 5 Axis working, with R rotation axis.

3, 500*300*300mm traveling distance, traveling range can be customized under customer's requirement.

4, Single soldering iron the moving range has many options depends on the product dimension, also can customized to double or tripple double soldering irons.

5, Support many welding method, point welding, drag welding,and other functions.

6, Teach pandent programing, manual setting all the welding points, also support CAD drawing import.

7, Using high quality Taiwan Hiwin brand Linear Guide, ensure the moving precision.

8, The machine adopts Stepper motor and timing belt control.

Automated welding process:
The robot adopts a fully automatic welding process, which can automatically perform positioning, feeding, welding, testing and other operations.
Greatly improve production efficiency, reduce manual operations, and realize standardized and large-scale production.

High-precision welding capability:
Adopting advanced visual positioning and robotic arm control technology, it can achieve high-precision solder joint positioning of ±0.05mm.
The welding quality is stable, the weld is uniform and beautiful, and the rework rate is greatly reduced.

Diversified scope of application:
It can be applied to welding operations of various electronic products, circuit boards, metal parts, etc.
Supports a variety of solder and welding nozzle types, which can be freely configured according to product requirements.
Can be integrated with the production line system to realize the integration of automated production lines.

Flexibility and scalability:
Adopting a floor-standing structure, it occupies a small area and can flexibly adjust the working area according to production needs.
Some models have mobile functions and can move freely between production lines.
Modular design, the system configuration can be flexibly expanded according to production capacity requirements.

Intelligent control and data management:
Built-in advanced control system, which can intelligently adjust and optimize welding parameters.
Support remote monitoring and production data collection, convenient for production management and quality analysis.
Some models can be operated and interacted with by touch screen or computer.

Specification:

Main machine configuration:

1, Double soldering Iron, double Y working platform

2, Handheld teach pendant programmer

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components

8, Cleaning box
