Professional 3W UV Laser Marking Machine PCB Handling Equipment With Intelligent Control System

Professional 3W UV Laser Marking Machine PCB Handling Equipment With Intelligent Control System

UV Laser Marking Machine is an important equipment used in the field of electronic manufacturing. It is mainly used for high-precision engraving and marking on the surface of PCB boards and electronic components.

High-precision marking
UV Laser Marking Machine uses ultraviolet lasers for direct writing, which can achieve extremely high resolution of 1-2mil.
It can finely mark various characters, patterns and QR codes on PCB surfaces, IC packages, resistors and capacitors and other components.

Fast and efficient
The laser scanning speed can reach hundreds of millimeters per second, which greatly improves the marking efficiency.
A single PCB board can complete the entire marking process in just a few seconds.

Strong durability
Laser marking has excellent high temperature resistance and chemical corrosion resistance.
The marked content is not easy to be worn or erased, which is conducive to traceability and identification.

Non-contact processing
Laser marking is a non-contact process that avoids mechanical wear and contamination problems.
It can be widely used for surface marking of sensitive electronic parts such as wafers, MEMS, etc.

Automated integration
UV Laser Marking Machine can be seamlessly integrated with SMT production lines.
With the conveyor belt, the entire process of loading, marking and unloading PCB boards is automatically completed.

Flexible programming
Equipped with professional CAD/CAM software, you can freely design various complex marking patterns.
The marking content can be programmed and changed at any time according to production needs.

​Specification

Features

1, 3,5W UV laser output power.

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

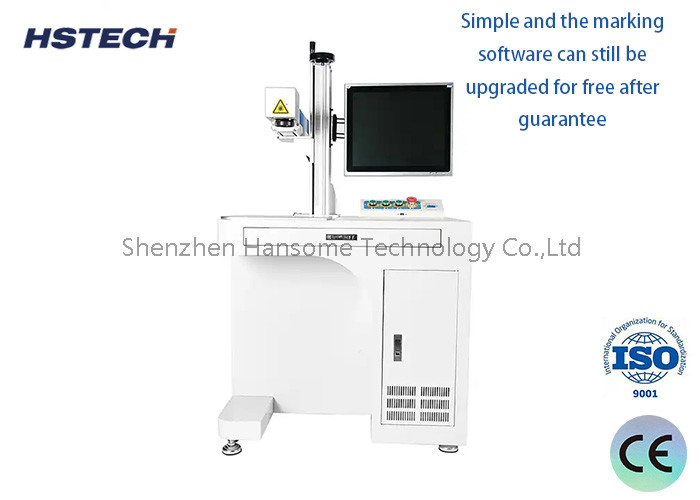

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Application

Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.
